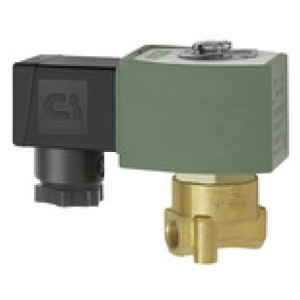

2/2-potni el.mag. ventil, NO, direk. upr., 24 V DC, G 1/4 slika
2/2-potni el.mag. ventil, NO, direk. upr., 24 V DC, G 1/4 slika

* slike so simbolične

2/2-potni el.mag. ventil, NO, direk. upr., 24 V DC, G 1/4

SKU: 102832RIE
EAN: 4047322159999

2/2-way solenoid valve,brass,NO,direc. operat.,24V DC, Med. temp. -25 to 80°C,Ambient temp. -25 to 55°C,NBR,G 1/4,PN 0-6.5bar

Standard series, proven over many years, available in three different versions

- Directly operated

- Combined operation

- Pilot-operated

For all applications with compressed air, neutral gases or low-viscosity, neutral media.

Čas dobave: Predvidoma 3 - 5 dni
236,81 €
ali od 11,59 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 11,59 € x 24 mesecev
  • 22,18 € x 12 mesecev
  • 43,38 € x 6 mesecev
  • 85,80 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj Standardni navoj Vrsta DN Max. obratovalni tlak [bar] B [mm] A [mm] Zaloga Cena Nakup Natisni
102832RIE G 1/4 G thread acc. to DIN EN ISO 228-1 2 3.2 6.5 40.0 80.0
Čas dobave: Predvidoma 3 - 5 dni
236,81 € Natisni
102831RIE Rp 1/8 Rp thread acc. to ISO 7-1 7 2.4 11 33.0 75.0
Čas dobave: Predvidoma 3 - 5 dni
193,49 € Natisni

Opis

2/2-way solenoid valve,brass,NO,direc. operat.,24V DC, Med. temp. -25 to 80°C,Ambient temp. -25 to 55°C,NBR,G 1/4,PN 0-6.5bar

Standard series, proven over many years, available in three different versions

- Directly operated

- Combined operation

- Pilot-operated

For all applications with compressed air, neutral gases or low-viscosity, neutral media.

Tehnični podatki in specifikacije

IP zaščita IP65 (with connector socket fitted)
Max. obratovalni tlak [bar] 6.5
Električni priključek ISO 4400, cable socket (Pg 11P)
Ohišje Brass
Sedež ventila Brass
Notranji deli Stainless steel
Tesnilo NBR
Min. sobna temperatura [°C] -25
Max. sobna temperatura [°C] 55
Min. temperatura medija [°C] -25
Max. temperatura medija [°C] 80
Navoj G 1/4
Vrsta 2
Ffunkcija normally open (NO)
Standardni navoj G thread acc. to DIN EN ISO 228-1
DN 3.2
A [mm] 80.0
B [mm] 40.0
