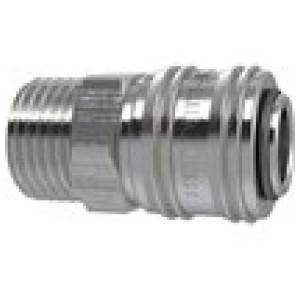

Hitre spojke I.D. 7.2ponikljana medenina, G 1/4 zunanji navoj slika
Hitre spojke I.D. 7.2ponikljana medenina, G 1/4 zunanji navoj slika

* slike so simbolične

Hitre spojke I.D. 7.2ponikljana medenina, G 1/4 zunanji navoj

SKU: 107280RIE
EAN: 4047322057363

Quick-connect coupling I.D. 7.2, nickel-plated brass, G 1/4 ET, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!

The closed sleeve protects the coupling from dirt.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"
Čas dobave: Predvidoma 3 - 5 dni
9,76 €
Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107282RIE G 1/2 ET 24 41.0
Čas dobave: Predvidoma 3 - 5 dni
9,76 € Natisni
107279RIE G 1/8 ET 22 38.0
Čas dobave: Predvidoma 3 - 5 dni
10,80 € Natisni
107281RIE G 3/8 ET 22 45.0
Čas dobave: Predvidoma 3 - 5 dni
9,76 € Natisni
107280RIE G 1/4 ET 22 40.0
Čas dobave: Predvidoma 3 - 5 dni
9,76 € Natisni

Opis

Quick-connect coupling I.D. 7.2, nickel-plated brass, G 1/4 ET, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!

The closed sleeve protects the coupling from dirt.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"

Tehnični podatki in specifikacije

DN 7.2
Povezava G 1/4 ET
a/f [mm] 22
Ohišje Nickel-plated brass
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 1000 l/min (air)
Vzmet Stainless steel 1.4310
Telo ventila Brass with a bare metal surface
Rokav Nickel-plated brass
Pritrdilni obroč Stainless steel 1.4310
Zaporni zatič Stainless steel 1.4034
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Dolžina [mm] 40.0
