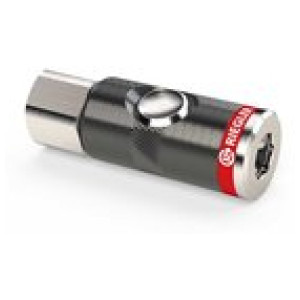

Pushbutton safety coupling I.D. 7.4, G 1/2 IT slika
Pushbutton safety coupling I.D. 7.4, G 1/2 IT slika

* slike so simbolične

Pushbutton safety coupling I.D. 7.4, G 1/2 IT

SKU: 199981RIE
EAN: 4047322698443

Pushbutton safety coupling I.D. 7.4, rotating, Aluminium, G 1/2 IT, Operating pressure max. 12 bar, Temp. -20 °C to 70 °C

High-quality, robust and durable, one-hand quick disconnect safety couplings.

When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked.
The plug is only disconnected when the pushbutton is pressed for the second time.
The dreaded "whiplash effect" is avoided and the risk of injury to the operator virtually eliminated.

The safety version conforms to ISO-Standard DIN EN ISO 4414.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.


Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
199980RIE G 3/8 IT 21 72.3
Ni na zalogi
? Povpraševanje Natisni
199981RIE G 1/2 IT 24 74.3
Ni na zalogi
? Povpraševanje Natisni
199979RIE G 1/4 IT 21 71.3
Ni na zalogi
? Povpraševanje Natisni

Opis

Pushbutton safety coupling I.D. 7.4, rotating, Aluminium, G 1/2 IT, Operating pressure max. 12 bar, Temp. -20 °C to 70 °C

High-quality, robust and durable, one-hand quick disconnect safety couplings.

When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked.
The plug is only disconnected when the pushbutton is pressed for the second time.
The dreaded "whiplash effect" is avoided and the risk of injury to the operator virtually eliminated.

The safety version conforms to ISO-Standard DIN EN ISO 4414.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.


Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive.

Tehnični podatki in specifikacije

DN 7.4
Max. obratovalni tlak [bar] 12
Povezava G 1/2 IT
a/f [mm] 24
Merjenje pretoka at 6 bar and Δp = 1 bar
Ohišje Anodised aluminium
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 70
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 70
Pretok 1600 l/min (air)
Notranji deli Stainless steel 1.4301
Navojni kos Nickel-plated brass
Ventil Hardened, galvanised steel
Gumb Hardened, galvanised steel
Dolžina [mm] 74.3
