Serv. enota 3-delna»FUTURA«Kov. Vel.1, G1/4, 0.5-8 Pol avto.
SKU: 152666RIE
EAN: 4047322604062

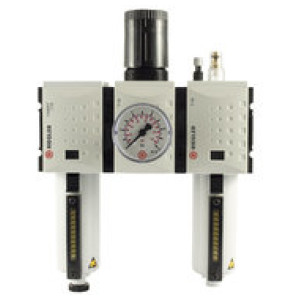

Service unit 3-part »FUTURA« with metal container, Viewing tube and pressure gauge, Size 1, G 1/4, Control range 0.5 - 8 bar, Semi
Three-piece service units with excellent flow rates in modern design.
Lockable diaphragm pressure regulator with secondary ventilation, oil can be filled without interrupting operation.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 18,71 € x 12 mesecev
- 36,61 € x 6 mesecev
- 72,41 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Odtok kondenzata | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
152721RIE | G 1 | Fully-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152680RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152685RIE | G 1 | Semi-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152712RIE | G 3/4 | Fully-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152673RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152709RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
139583RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
139579RIE | G 3/8 | Semi-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
152694RIE | G 3/8 | Fully-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152667RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
139586RIE | G 1/2 | Semi-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
139587RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
152686RIE | G 1 | Semi-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152663RIE | G 1/4 | Semi-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152682RIE | G 1 | Semi-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152696RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152681RIE | G 1 | Semi-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152672RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152697RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152718RIE | G 1 | Fully-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152711RIE | G 3/4 | Fully-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
139578RIE | G 3/8 | Semi-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
152707RIE | G 1/2 | Fully-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
152719RIE | G 1 | Fully-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152675RIE | G 3/4 | Semi-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152717RIE | G 1 | Fully-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152666RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152690RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152720RIE | G 1 | Fully-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152713RIE | G 3/4 | Fully-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152700RIE | G 3/8 | Fully-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
152704RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
152664RIE | G 1/4 | Semi-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152671RIE | G 3/8 | Semi-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152705RIE | G 1/2 | Fully-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
139588RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
152679RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
139589RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
152722RIE | G 1 | Fully-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152668RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152676RIE | G 3/4 | Semi-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
139580RIE | G 3/8 | Semi-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
152702RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
152677RIE | G 3/4 | Semi-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152698RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152695RIE | G 3/8 | Fully-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152708RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
139585RIE | G 1/2 | Semi-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
152684RIE | G 1 | Semi-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152669RIE | G 3/8 | Semi-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152670RIE | G 3/8 | Semi-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152678RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152710RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
139581RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
152689RIE | G 1/4 | Fully-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152716RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152714RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152699RIE | G 3/8 | Fully-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
152692RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152703RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
152688RIE | G 1/4 | Fully-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152665RIE | G 1/4 | Semi-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152674RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 156.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 200,49 € | | |
152715RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 255.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 692,66 € | | |
152683RIE | G 1 | Semi-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 255.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 571,74 € | | |
152693RIE | G 3/8 | Fully-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152706RIE | G 1/2 | Fully-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
139584RIE | G 1/2 | Semi-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | | |
152701RIE | G 3/8 | Fully-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 189.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 350,08 € | | |
152691RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
152687RIE | G 1/4 | Fully-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 156.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 255,61 € | | |
139582RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 189.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 287,38 € | |
Opis
Service unit 3-part »FUTURA« with metal container, Viewing tube and pressure gauge, Size 1, G 1/4, Control range 0.5 - 8 bar, Semi
Three-piece service units with excellent flow rates in modern design.
Lockable diaphragm pressure regulator with secondary ventilation, oil can be filled without interrupting operation.
Tehnični podatki in specifikacije
Navoj | G 1/4 |
Max. vhodni tlak [bar] | 16 |
Velikost | 1 |
Min. vhodni tlak [bar] | 1.5 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 50 |
Ohišje | PA66 GF60 |
Priključni navoj | Material: Die-cast zinc |
Tesnilo | NBR |
Membrane | NBR |
Element filtra | Cellpor (PE) |
Rang filtra [µm] | 5 |
Vidna kupola | PC |
Pretok [l/min] | 1750 |
Odtok kondenzata | Semi-automatic |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 8 |
Zaslon manometra max. [bar] | 10 |
Posoda | Metal container with viewing tube |

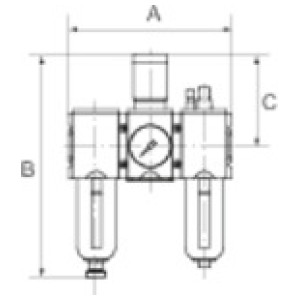

A [mm] | 156.0 |
B [mm] | 226.0 |
C [mm] | 96.0 |
Serija | FUTURA |
Srednje | Compressed air, neutral gases |
Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
