* slike so simbolične

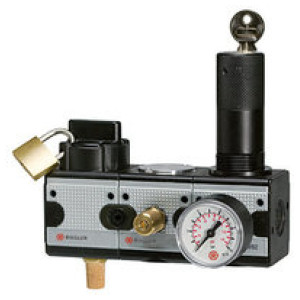

Servisna enota VARNOSTNA »multifix«, Velikost 3, G 1/2
SKU: 100597RIE
EAN: 4047322245586
Service station SAFETY »multifix«, Ball valve - start-up valve - pressure regulator, Size 3, G 1/2, Input pressure 2 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Obrestno financiranje
- 12,76 € x 36 mesecev
- 18,33 € x 24 mesecev
- 35,09 € x 12 mesecev
- 68,64 € x 6 mesecev
- 135,76 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

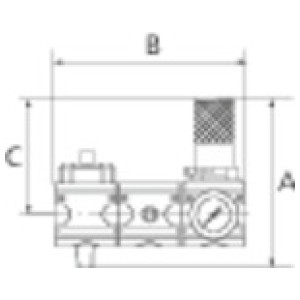

| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 100598RIE | G 1 | 5 | 157.0 | 241.7 | 282.8 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 784,76 € |  | |
| 100597RIE | G 1/2 | 3 | 122.0 | 189.0 | 200.8 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 374,83 € | | |
| 100596RIE | G 1/4 | 1 | 94.0 | 128.0 | 137.8 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 306,70 € | |
Opis
Service station SAFETY »multifix«, Ball valve - start-up valve - pressure regulator, Size 3, G 1/2, Input pressure 2 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 3 |
| Min. vhodni tlak [bar] | 2 |
| Max. temperaturno območje [°C] | 60 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Min. krmilno območje [bar] | 2 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Odzračevalni vtič | Silencer (ball valve) |
| Vzmet pokrova motorja | POM |
| Pretok [l/min] | 4000 |
| A [mm] | 189.0 |
| B [mm] | 200.8 |
| C [mm] | 122.0 |
| Serija | multifix |
| Srednje | Compressed air |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
