T priključek, za za cev 10/8 mm, AF1 16, AF2 12 slika
T priključek, za za cev 10/8 mm, AF1 16, AF2 12 slika

* slike so simbolične

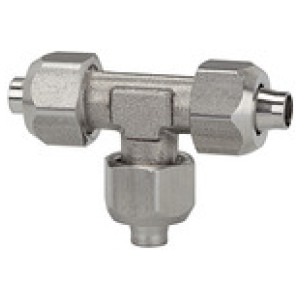

T priključek, za za cev 10/8 mm, AF1 16, AF2 12

SKU: 110717RIE
EAN: 4047322269421

T-connection, for hose 10/8 mm, AF1 16, AF2 12, Pressure range max. 25 bar, Temperature -40 °C to 200 °C, Stainless steel 1.4404

Supplied without seals. For use with corrosive media and at high temperatures.

Screw fitting series made of stainless steel for all applications where compliance with strict tightness, pressure and temperature requirements is essential.

The parts are manufactured without rubber seals, in other words they are ideal for very high temperatures or for use with corrosive liquids, e.g. in cases when FPM is no longer suitable.

Čas dobave: Predvidoma 3 - 5 dni
65,14 €
ali od 11,90 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 11,90 € x 6 mesecev
  • 23,54 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

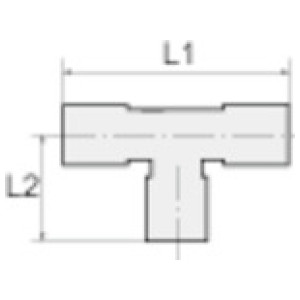

Šifra Za cevi [mm] a/f 2 [mm] a/f 1 [mm] L2 [mm] L1 [mm] Zaloga Cena Nakup Natisni
110717RIE 10/8 12 16 26.0 52.0
Čas dobave: Predvidoma 3 - 5 dni
65,14 € Natisni
110716RIE 8/6 10 14 23.0 46.0
Čas dobave: Predvidoma 3 - 5 dni
50,25 € Natisni
110715RIE 6/4 10 12 22.5 46.0
Čas dobave: Predvidoma 3 - 5 dni
46,84 € Natisni

Opis

T-connection, for hose 10/8 mm, AF1 16, AF2 12, Pressure range max. 25 bar, Temperature -40 °C to 200 °C, Stainless steel 1.4404

Supplied without seals. For use with corrosive media and at high temperatures.

Screw fitting series made of stainless steel for all applications where compliance with strict tightness, pressure and temperature requirements is essential.

The parts are manufactured without rubber seals, in other words they are ideal for very high temperatures or for use with corrosive liquids, e.g. in cases when FPM is no longer suitable.

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] -40
Max. delovni tlak [bar] 25
Max. temperaturno območje [°C] 200
Material Stainless steel 1.4404
Tesnilo Pure metal
Priporočena cev PTFE hose
Za cevi [mm] 10/8
L1 [mm] 52.0
L2 [mm] 26.0
a/f 1 [mm] 16
a/f 2 [mm] 12
