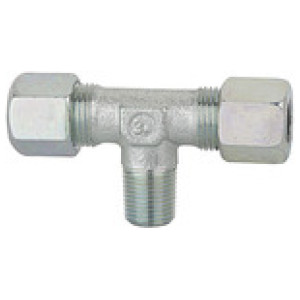

T vijačni prik., R 1/8 , zun. premer Ø 8, galvan.jeklo
SKU: 112186RIE
EAN: 4047322166522
T screw-in fitting, R 1/8 o., Pipe exterior Ø 8 mm, PN bar 100, AF1 14, AF2 12, galvanised steel
Male branch tee, conical male thread acc. to ISO 7-1, very light type
Čas dobave: Predvidoma 3 - 5 dni
22,07 €
| Šifra | O.D. cev [mm] | a/f 2 [mm] | a/f 1 [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 112184RIE | 4 | 9 | 10 | 17.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,62 € |  | |
| 112186RIE | 8 | 12 | 14 | 20.0 | 23.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,07 € | | |
| 112185RIE | 6 | 9 | 12 | 17.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,61 € | |
Opis
T screw-in fitting, R 1/8 o., Pipe exterior Ø 8 mm, PN bar 100, AF1 14, AF2 12, galvanised steel
Male branch tee, conical male thread acc. to ISO 7-1, very light type

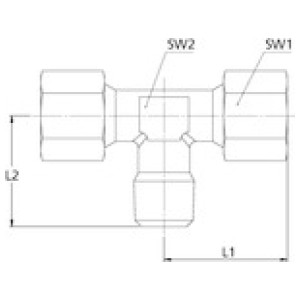

Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | R 1/8 |
| O.D. cev [mm] | 8 |
| L1 [mm] | 23.0 |
| L2 [mm] | 20.0 |
| a/f 1 [mm] | 14 |
| a/f 2 [mm] | 12 |
| PN [bar] | 100 |
