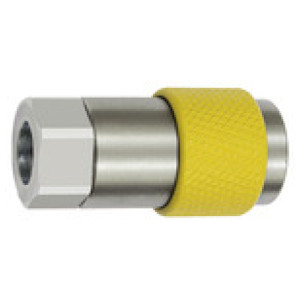

Varnostna vrtljiva spojka I.D.6, ISO 6150 C,G1/4 N.N.,rumena slika
Varnostna vrtljiva spojka I.D.6, ISO 6150 C,G1/4 N.N.,rumena slika

* slike so simbolične

Varnostna vrtljiva spojka I.D.6, ISO 6150 C,G1/4 N.N.,rumena

SKU: 141859RIE
EAN: 4047322564946

Captive swivel safety coupling I.D. 6, ISO 6150 C, Steel, 2-stage, G 1/4 IT, yellow, max. 25 bar, Temp. -15 °C to 200 °C

High quality, robust and long lifetime one-hand rotation secure coupling.

A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch.

The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve. The colour and shape coding of the coupling and plug-in nipple makes it possible only to couple to the same colours.

This coupling meets ISO standard DIN EN ISO 4414, EN 983.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.

Čas dobave: Predvidoma 3 - 5 dni
56,93 €
ali od 10,44 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,44 € x 6 mesecev
  • 20,64 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Barva Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
141861RIE Yellow G 1/2 IT 24 67.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141886RIE Blue G 3/8 IT 22 65.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141873RIE Gray G 3/8 IT 22 65.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141860RIE Yellow G 3/8 IT 22 65.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141872RIE Gray G 1/4 IT 22 56.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141887RIE Blue G 1/2 IT 24 67.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141885RIE Blue G 1/4 IT 22 56.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141847RIE Red G 3/8 IT 22 67.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141874RIE Gray G 1/2 IT 24 67.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141846RIE Red G 1/4 IT 22 67.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141848RIE Red G 1/2 IT 24 67.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni
141859RIE Yellow G 1/4 IT 22 56.0
Čas dobave: Predvidoma 3 - 5 dni
56,93 € Natisni

Opis

Captive swivel safety coupling I.D. 6, ISO 6150 C, Steel, 2-stage, G 1/4 IT, yellow, max. 25 bar, Temp. -15 °C to 200 °C

High quality, robust and long lifetime one-hand rotation secure coupling.

A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch.

The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve. The colour and shape coding of the coupling and plug-in nipple makes it possible only to couple to the same colours.

This coupling meets ISO standard DIN EN ISO 4414, EN 983.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.

Tehnični podatki in specifikacije

DN 6
Povezava G 1/4 IT
Barva Yellow
a/f [mm] 22
Dolžina [mm] 56.0
Delovni tlak max. 25 bar / max. 16 bar when attaching / detaching
Min. temperaturno območje [°C] -15
Max. temperaturno območje [°C] 200
Ohišje Steel, QPQ treated
Tesnilo FKM
Pretok 630 l/min (air)
Vzmet Stainless steel
Rokav Galvanised steel, painted colored
Navojni kos Galvanised steel
Ventil Polyphenylene sulfide (PPS)
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Vtični profil acc. ISO 6150 C
