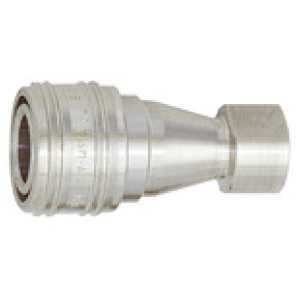

Zaklep hid. spojke na obojestransko1.4305G 3/8 N.N.I.D. 7.5 slika
Zaklep hid. spojke na obojestransko1.4305G 3/8 N.N.I.D. 7.5 slika

* slike so simbolične

Zaklep hid. spojke na obojestransko1.4305G 3/8 N.N.I.D. 7.5

SKU: 107705RIE
EAN: 4047322061346

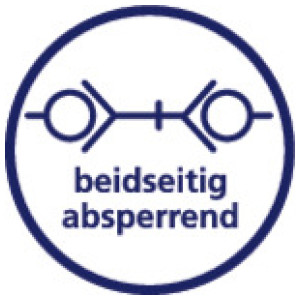

Hydraulic coupling locking on both sides, Stainless steel 1.4305, G 3/8 IT, I.D. 7.5, Operating pressure max. 250 bar

Hydraulic couplings, both sides sealing, for liquid media acc. to ISO 7241, B Series.

Areas of application: machine and plant engineering, manufacturing industry, chemical / pharmaceutical industry, automotive, food technology.

Čas dobave: Predvidoma 3 - 5 dni
181,46 €
ali od 16,94 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 16,94 € x 12 mesecev
  • 33,13 € x 6 mesecev
  • 65,53 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava DN a/f [mm] Dolžina [mm] Max. obratovalni tlak [bar] Volumski pretok (zrak) [l/min] Zaloga Cena Nakup Natisni
107704RIE G 1/4 IT 6.3 19 57.6 250 840
Čas dobave: Predvidoma 3 - 5 dni
118,71 € Natisni
107707RIE G 3/4 IT 13 34 96.0 160 4500
Čas dobave: Predvidoma 3 - 5 dni
498,58 € Natisni
107703RIE G 1/8 IT 4.3 14 48.5 250 440
Čas dobave: Predvidoma 3 - 5 dni
116,77 € Natisni
107706RIE G 1/2 IT 11 27 76.0 250 1950
Čas dobave: Predvidoma 3 - 5 dni
247,16 € Natisni
107705RIE G 3/8 IT 7.5 22 64.2 250 1280
Čas dobave: Predvidoma 3 - 5 dni
181,46 € Natisni

Opis

Hydraulic coupling locking on both sides, Stainless steel 1.4305, G 3/8 IT, I.D. 7.5, Operating pressure max. 250 bar

Hydraulic couplings, both sides sealing, for liquid media acc. to ISO 7241, B Series.

Areas of application: machine and plant engineering, manufacturing industry, chemical / pharmaceutical industry, automotive, food technology.

Tehnični podatki in specifikacije

Povezava G 3/8 IT
Max. obratovalni tlak [bar] 250
a/f [mm] 22
DN 7.5
Delovni tlak Referred to medium temp. of 50 °C, static working pressure
Ohišje Stainless steel 1.4305
Tesnilo FKM
Min. temperatura medija [°C] -15
Max. temperatura medija [°C] 200
Min. sobna temperatura [°C] -15
Max. sobna temperatura [°C] 200
Krogla Stainless steel 1.4401
Vzmet Stainless steel 1.4310
Rokav Stainless steel 1.4305
Ventil Stainless steel 1.4305
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Dolžina [mm] 64.2
Volumski pretok (zrak) [l/min] 1280
