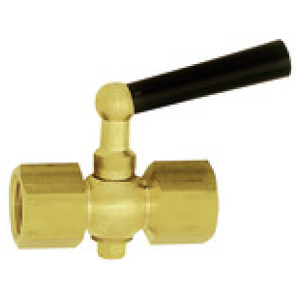

* slike so simbolične
Zaporni ventili manometrov, puša-puša, 1.4571, G 1/2
SKU: 102644RIE
EAN: 4047322122702
Block valve pressure gauge, Bushing - Bushing, made of stainless steel 1.4571, G 1/2, PN 25 bar, AF 27, max. 50 °C
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.
When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.
Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Obrestno financiranje
- 12,54 € x 12 mesecev
- 24,53 € x 6 mesecev
- 48,51 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Ohišje | Različica | PN [bar] | a/f [mm] | Testna prirobnica | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 102644RIE | G 1/2 | Stainless steel 1.4571 | female / female | 25 | 27 | Čas dobave: Predvidoma 3 - 5 dni | 134,15 € |  | ||
| 102642RIE | G 3/8 | Brass with a bare metal surface | female / female | 16 | 22 | Čas dobave: Predvidoma 3 - 5 dni | 20,97 € | | ||
| 102641RIE | G 1/4 | Brass with a bare metal surface | female / female | 6 | 17 | Čas dobave: Predvidoma 3 - 5 dni | 17,52 € | | ||
| 102646RIE | G 1/2 | Brass with a bare metal surface | female / female, with test flange 40x5 | 25 | 27 | 40x5 | Čas dobave: Predvidoma 3 - 5 dni | 42,59 € | | |
| 102643RIE | G 1/2 | Brass with a bare metal surface | female / female | 25 | 27 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | | ||
| 102645RIE | G 1/2 | Brass with a bare metal surface | female / female, with test flange 60x25x10 | 25 | 27 | 60x25x10 | Čas dobave: Predvidoma 3 - 5 dni | 41,04 € | |
Opis
Block valve pressure gauge, Bushing - Bushing, made of stainless steel 1.4571, G 1/2, PN 25 bar, AF 27, max. 50 °C
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.
When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.
Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| PN [bar] | 25 |
| a/f [mm] | 27 |
| Max. temperaturno območje [°C] | 50 |
| Ročica | Plastic |
| Ohišje | Stainless steel 1.4571 |
| Standard | DIN 16261-A |
| Različica | female / female |
| Aplikacije | For all pressure gauges with a flat gasket acc. to DIN 16258 |
