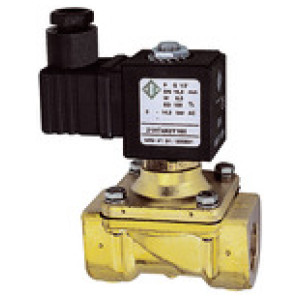

* slike so simbolične
2/2-el.mag.vent. med.,NC,vod. krm.,24VDC, G1, 0 - 6bar
SKU: 102912RIE
EAN: 4047322159883
2/2-way solenoid valve brass, NC, force pilot operated, 24V DC, 14W, Medium temp. -10°C to 90°C, NBR+PA, G 1, PN 0 - 6bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
2/2-el.mag.vent. med.,NC,vod. krm.,24VDC, G1, 0 - 6bar
Električni priključek: For connector socket Pg 9/Pg 11 acc. to ISO 4400
Ffunkcija: normally closed (NC)
IP zaščita: IP 65 (with connector socket fitted)
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass
B [mm]: 104.0
Ffunkcija: normally closed (NC)
IP zaščita: IP 65 (with connector socket fitted)
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass
B [mm]: 104.0
| Šifra | Navoj | Max. obratovalni tlak [bar] | DN | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 102910RIE | G 1/2 | 14 | 16 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 102909RIE | G 3/8 | 14 | 11 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 102911RIE | G 3/4 | 14 | 16 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 102912RIE | G 1 | 6 | 25 | 104.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
2/2-way solenoid valve brass, NC, force pilot operated, 24V DC, 14W, Medium temp. -10°C to 90°C, NBR+PA, G 1, PN 0 - 6bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 6 |
| Električni priključek | For connector socket Pg 9/Pg 11 acc. to ISO 4400 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 80 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 90 |
| Navoj | G 1 |
| Vrsta | 8 |
| Ffunkcija | normally closed (NC) |
| DN | 25 |

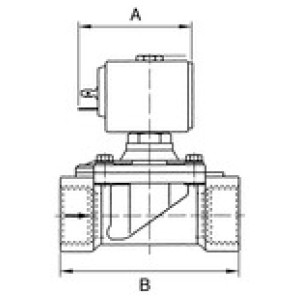

| A [mm] | 67.0 |
| B [mm] | 104.0 |
