* slike so simbolične

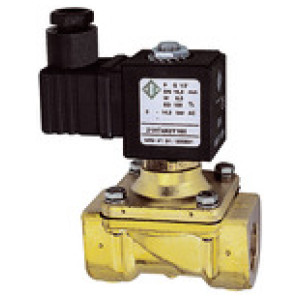

2/2-el.mag.vent. med.,NC,vod. krm.,24VDC, G3/4, 0-14bar
SKU: 102911RIE
EAN: 4047322159845
2/2-way solenoid valve brass, NC, force pilot operated, 24V DC, 14W, Medium temp. -10°C to 90°C, NBR+PA, G 3/4, PN 0 - 14bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Obrestno financiranje
- 15,53 € x 12 mesecev
- 30,39 € x 6 mesecev
- 60,10 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Max. obratovalni tlak [bar] | DN | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 102910RIE | G 1/2 | 14 | 16 | 70.0 | Čas dobave 3 - 5 dni | 166,09 € |  | |
| 102909RIE | G 3/8 | 14 | 11 | 56.0 | Čas dobave 3 - 5 dni | 152,05 € | | |
| 102911RIE | G 3/4 | 14 | 16 | 70.0 | Čas dobave 3 - 5 dni | 166,09 € | | |
| 102912RIE | G 1 | 6 | 25 | 104.0 | Čas dobave 3 - 5 dni | 211,17 € | |
Opis
2/2-way solenoid valve brass, NC, force pilot operated, 24V DC, 14W, Medium temp. -10°C to 90°C, NBR+PA, G 3/4, PN 0 - 14bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 14 |
| Električni priključek | For connector socket Pg 9/Pg 11 acc. to ISO 4400 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 80 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 90 |
| Navoj | G 3/4 |
| Vrsta | 8 |
| Ffunkcija | normally closed (NC) |
| DN | 16 |

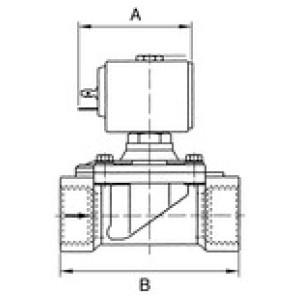

| A [mm] | 67.0 |
| B [mm] | 70.0 |
