2/2-el.mag.vent.,NC,prisil.vod. krm.,230-240V,G1,0-14bar
SKU: 102907RIE
EAN: 4047322159876

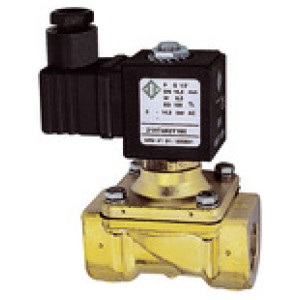

2/2-way solenoid valve brass,NC,force pilot operated,230-240V,50-60Hz,27VA, Medium temp. -10°C to 90°C, NBR+PA, G 1, PN 0 - 14bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
2/2-el.mag.vent.,NC,prisil.vod. krm.,230-240V,G1,0-14bar
Električni priključek: For connector socket Pg 9/Pg 11 acc. to ISO 4400
Ffunkcija: normally closed (NC)
IP zaščita: IP 65 (with connector socket fitted)
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass

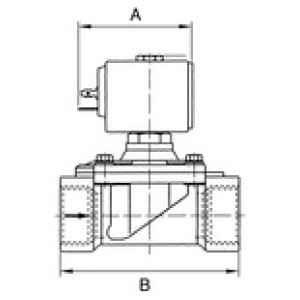

B [mm]: 104.0
Ffunkcija: normally closed (NC)
IP zaščita: IP 65 (with connector socket fitted)
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass
B [mm]: 104.0
| Šifra | Navoj | Max. obratovalni tlak [bar] | DN | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 102906RIE | G 3/4 | 14 | 16 | 54.0 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 102904RIE | G 3/8 | 14 | 11 | 54.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 102905RIE | G 1/2 | 14 | 16 | 54.0 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 102908RIE | G 1 | 16 | 25 | 54.0 | 104.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 102907RIE | G 1 | 14 | 25 | 67.0 | 104.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
2/2-way solenoid valve brass,NC,force pilot operated,230-240V,50-60Hz,27VA, Medium temp. -10°C to 90°C, NBR+PA, G 1, PN 0 - 14bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 14 |
| Električni priključek | For connector socket Pg 9/Pg 11 acc. to ISO 4400 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 80 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 90 |
| Navoj | G 1 |
| Vrsta | 8 |
| Ffunkcija | normally closed (NC) |
| DN | 25 |
| A [mm] | 67.0 |
| B [mm] | 104.0 |
