2/2-el.mag.vent.,NO,direkt. krm.., 24V DC,8W, G1/8,0-20bar
SKU: 102900RIE
EAN: 4047322158947
2/2-way solenoid valve brass, NO, directly operated, 24V DC, 8W, Medium temp. -10°C to 140°C, FKM, G 1/8, PN 0 - 20bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Obrestno financiranje
- 16,84 € x 6 mesecev
- 33,31 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Max. obratovalni tlak [bar] | DN | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 102903RIE | G 1/4 | 4 | 4.5 | Čas dobave: Predvidoma 3 - 5 dni | 92,06 € |  | |
| 102901RIE | G 1/8 | 14 | 2.5 | Čas dobave: Predvidoma 3 - 5 dni | 92,06 € | | |
| 102902RIE | G 1/4 | 10 | 3 | Čas dobave: Predvidoma 3 - 5 dni | 92,06 € | | |
| 102900RIE | G 1/8 | 20 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 92,06 € | |
Opis
2/2-way solenoid valve brass, NO, directly operated, 24V DC, 8W, Medium temp. -10°C to 140°C, FKM, G 1/8, PN 0 - 20bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 20 |
| Električni priključek | For connector socket Pg 9/Pg 11 acc. to ISO 4400 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 80 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 140 |
| Navoj | G 1/8 |
| Vrsta | 2 |
| Ffunkcija | normally open (NO) |
| DN | 2 |

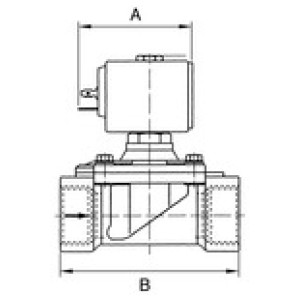

| A [mm] | 54.0 |
| B [mm] | 40.0 |
