2/2-el.magn.ventil,NC,direkt.krm..,24V DC,8W,FKM,G1/4,PN0-9bar
SKU: 102893RIE
EAN: 4047322158831
2/2-way solenoid valve brass, NC, directly operated, 24V DC, 8W, Medium temp. -10°C to 140°C, FKM, G 1/4, PN 0 - 9bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Obrestno financiranje
- 12,45 € x 6 mesecev
- 24,62 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Vrsta | DN | Max. obratovalni tlak [bar] | B [mm] | A [mm] | Max. sobna temperatura [°C] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|
102891RIE | G 1/8 | 2 | 2.5 | 9 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € | ||
102890RIE | G 1/8 | 1 | 2.3 | 8 | 30.0 | 41.0 | 60 | Čas dobave: Predvidoma 3 - 5 dni | 46,64 € | ||
102894RIE | G 1/4 | 2 | 3 | 6 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € | ||
102892RIE | G 1/8 | 2 | 3 | 6 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € | ||
102895RIE | G 1/4 | 2 | 4.5 | 2 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € | ||
102893RIE | G 1/4 | 2 | 2.5 | 9 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € |
Opis
2/2-way solenoid valve brass, NC, directly operated, 24V DC, 8W, Medium temp. -10°C to 140°C, FKM, G 1/4, PN 0 - 9bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
IP zaščita | IP 65 (with connector socket fitted) |
Max. obratovalni tlak [bar] | 9 |
Električni priključek | For connector socket Pg 9/Pg 11 acc. to ISO 4400 |
Ohišje | Brass |
Sedež ventila | Brass |
Notranji deli | Stainless steel |
Tesnilo | FPM |
Min. sobna temperatura [°C] | -10 |
Max. sobna temperatura [°C] | 80 |
Min. temperatura medija [°C] | -10 |
Max. temperatura medija [°C] | 140 |
Navoj | G 1/4 |
Vrsta | 2 |
Ffunkcija | normally closed (NC) |
DN | 2.5 |

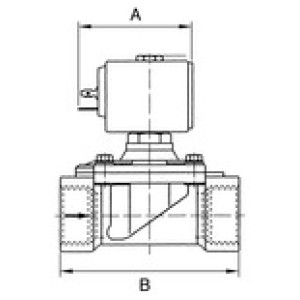

A [mm] | 54.0 |
B [mm] | 40.0 |
