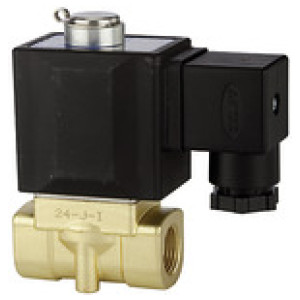

2/2-potni el.mag. venti NO, direk. upr., 24 V DC slika
2/2-potni el.mag. venti NO, direk. upr., 24 V DC slika

* slike so simbolične

2/2-potni el.mag. venti NO, direk. upr., 24 V DC

SKU: 116547RIE
EAN: 4047322324885

2/2-way solenoid valve, Brass, NO, directly operated, 24 V DC, Medium temperature max. 80 °C / 90 °C, G 3/8, PN 0 - 7 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

For all applications with compressed air, neutral gases or low-viscosity, neutral media.

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Čas dobave: Predvidoma 3 - 5 dni
111,46 €
ali od 10,39 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,39 € x 12 mesecev
  • 20,32 € x 6 mesecev
  • 40,19 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj DN B [mm] A [mm] C [mm] Zaloga Cena Nakup Natisni
116549RIE G 1/2 5 52.0 85.0 92.0
Čas dobave: Predvidoma 3 - 5 dni
111,46 € Natisni
116545RIE G 1/4 3 40.0 70.0 76.0
Čas dobave: Predvidoma 3 - 5 dni
76,63 € Natisni
116543RIE G 1/8 3 40.0 70.0 76.0
Čas dobave: Predvidoma 3 - 5 dni
76,63 € Natisni
116547RIE G 3/8 5 52.0 85.0 92.0
Čas dobave: Predvidoma 3 - 5 dni
111,46 € Natisni

Opis

2/2-way solenoid valve, Brass, NO, directly operated, 24 V DC, Medium temperature max. 80 °C / 90 °C, G 3/8, PN 0 - 7 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

For all applications with compressed air, neutral gases or low-viscosity, neutral media.

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Tehnični podatki in specifikacije

IP zaščita IP 65
Max. obratovalni tlak [bar] 7
Ohišje Brass
Sedež ventila Brass
Notranji deli Stainless steel
Tesnilo FPM
Navoj G 3/8
Vrsta 2
Standardni navoj G thread acc. to DIN EN ISO 228-1
A [mm] 85.0
B [mm] 52.0
C [mm] 92.0
DN 5
