* slike so simbolične

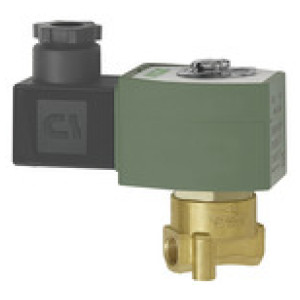

2/2-potni el.mag. ventil, NC, direk. upr., 24 V DC, G 1/8
SKU: 102823RIE
EAN: 4047322156752
2/2-way solenoid valve,brass,NC,direc. operat.,24V DC, Med. temp. -25 to 80°C,Ambient temp. -25 to 55°C,NBR,G 1/8,PN 0-8bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Obrestno financiranje
- 19,22 € x 6 mesecev
- 38,02 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Min. sobna temperatura [°C] | Min. temperatura medija [°C] | Navoj | Tesnilo | Vrsta | A [mm] | Max. temperatura medija [°C] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 102824RIE | -15 | -15 | G 1/8 | FPM | 1 | 75.0 | 120 | Čas dobave 3 - 5 dni | 120,83 € |  | |
| 102823RIE | -25 | -25 | G 1/8 | NBR | 1 | 75.0 | 80 | Čas dobave 3 - 5 dni | 104,75 € | | |
| 102826RIE | -15 | -15 | G 1/4 | FPM | 2 | 91.0 | 120 | Čas dobave 3 - 5 dni | 139,28 € | | |
| 102825RIE | -25 | -25 | G 1/4 | NBR | 2 | 91.0 | 80 | Čas dobave 3 - 5 dni | 118,57 € | |
Opis
2/2-way solenoid valve,brass,NC,direc. operat.,24V DC, Med. temp. -25 to 80°C,Ambient temp. -25 to 55°C,NBR,G 1/8,PN 0-8bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 8 |
| Električni priključek | ISO 4400, cable socket (Pg 11P) |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -25 |
| Max. sobna temperatura [°C] | 55 |
| Min. temperatura medija [°C] | -25 |
| Max. temperatura medija [°C] | 80 |
| Navoj | G 1/8 |
| Vrsta | 1 |
| Ffunkcija | normally closed (NC) |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| DN | 3.2 |
| A [mm] | 75.0 |
| B [mm] | 30.0 |
