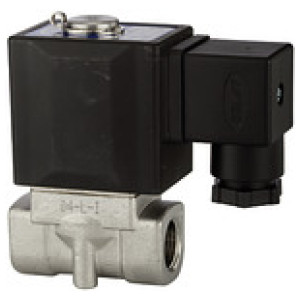

2/2-potni el.mag. ventil NC, direk. upr., 24 V DC, G 3/8 slika
2/2-potni el.mag. ventil NC, direk. upr., 24 V DC, G 3/8 slika

* slike so simbolične

2/2-potni el.mag. ventil NC, direk. upr., 24 V DC, G 3/8

SKU: 116588RIE
EAN: 4047322323932

2/2-way solenoid valve, Stainless steel, NC, directly operated, 24 V DC, Medium temp. max. 80 °C/90 °C, G 3/8, PN 0 - 30 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Čas dobave: Predvidoma 3 - 5 dni
94,15 €
ali od 17,21 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 17,21 € x 6 mesecev
  • 34,03 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj DN B [mm] A [mm] C [mm] Zaloga Cena Nakup Natisni
116590RIE G 1/2 3 52.0 85.0 87.0
Čas dobave: Predvidoma 3 - 5 dni
94,15 € Natisni
116586RIE G 1/4 1.5 40.0 70.0 70.7
Čas dobave: Predvidoma 3 - 5 dni
67,50 € Natisni
116584RIE G 1/8 1.5 40.0 70.0 70.7
Čas dobave: Predvidoma 3 - 5 dni
67,50 € Natisni
116588RIE G 3/8 3 52.0 85.0 87.0
Čas dobave: Predvidoma 3 - 5 dni
94,15 € Natisni

Opis

2/2-way solenoid valve, Stainless steel, NC, directly operated, 24 V DC, Medium temp. max. 80 °C/90 °C, G 3/8, PN 0 - 30 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Tehnični podatki in specifikacije

IP zaščita IP 65
Max. obratovalni tlak [bar] 30
Ohišje Stainless steel 1.4301
Sedež ventila Stainless steel 1.4301
Notranji deli Stainless steel
Tesnilo FPM
Navoj G 3/8
Vrsta 1
Standardni navoj G thread acc. to DIN EN ISO 228-1
A [mm] 85.0
B [mm] 52.0
C [mm] 87.0
DN 3
