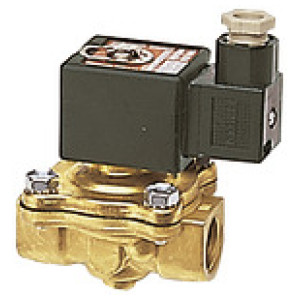

2/2-potni el.mag. ventil, NC, vod. krm., 24 V DC, 3/4
SKU: 102872RIE
EAN: 4047322158268
2/2-way solenoid valve brass, NC, pilot operated, 24 V DC, Medium temperature -20 °C to 120 °C, Rp 3/4, PN 0.35 - 7 bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Obrestno financiranje
- 13,39 € x 24 mesecev
- 25,64 € x 12 mesecev
- 50,15 € x 6 mesecev
- 99,20 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Tesnilo | Vrsta | Max. obratovalni tlak [bar] | DN | B [mm] | Max. temperatura medija [°C] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 102868RIE | Rp 3/8 | FKM | 3 | 9 | 16 | 70.0 | 120 | Čas dobave: Predvidoma 3 - 5 dni | 196,38 € |  | |
| 102879RIE | Rp 2 | NBR | 5 | 3 | 44 | 129.0 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 743,00 € | | |
| 102876RIE | Rp 1 1/4 | FKM | 4 | 9 | 28 | 95.0 | 120 | Čas dobave: Predvidoma 3 - 5 dni | 551,45 € | | |
| 102878RIE | Rp 1 1/2 | FKM | 5 | 9 | 32 | 111.0 | 120 | Čas dobave: Predvidoma 3 - 5 dni | 759,76 € | | |
| 102872RIE | Rp 3/4 | FKM | 3 | 7 | 19 | 71.0 | 120 | Čas dobave: Predvidoma 3 - 5 dni | 274,09 € | | |
| 102869RIE | Rp 1/2 | NBR | 3 | 9 | 16 | 70.0 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 172,06 € | | |
| 102874RIE | Rp 1 | FKM | 4 | 9 | 25 | 95.0 | 120 | Čas dobave: Predvidoma 3 - 5 dni | 431,65 € | | |
| 102871RIE | Rp 3/4 | NBR | 3 | 7 | 19 | 71.0 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 249,73 € | | |
| 102875RIE | Rp 1 1/4 | NBR | 4 | 9 | 28 | 95.0 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 421,12 € | | |
| 102873RIE | Rp 1 | NBR | 4 | 9 | 25 | 95.0 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 325,68 € | | |
| 102870RIE | Rp 1/2 | FKM | 3 | 9 | 16 | 70.0 | 120 | Čas dobave: Predvidoma 3 - 5 dni | 196,38 € | | |
| 102867RIE | Rp 3/8 | NBR | 3 | 9 | 16 | 70.0 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 172,06 € | | |
| 102877RIE | Rp 1 1/2 | NBR | 5 | 9 | 32 | 111.0 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 486,54 € | |
Opis
2/2-way solenoid valve brass, NC, pilot operated, 24 V DC, Medium temperature -20 °C to 120 °C, Rp 3/4, PN 0.35 - 7 bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Min. obratovalni tlak [bar] | 0.35 |
| Max. obratovalni tlak [bar] | 7 |
| Električni priključek | ISO 4400; cable socket (Pg 11P) |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | FKM |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 50 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 120 |
| Navoj | Rp 3/4 |
| Vrsta | 3 |
| Ffunkcija | normally closed (NC) |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| DN | 19 |
| A [mm] | 80.0 |
| B [mm] | 71.0 |
