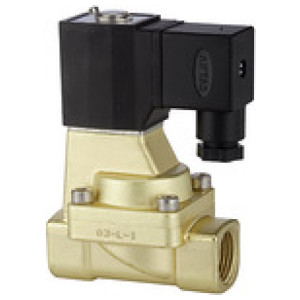

2/2-potni el.mag. ventil NC, vod. krm., 24 V DC, G 1/2 slika
2/2-potni el.mag. ventil NC, vod. krm., 24 V DC, G 1/2 slika

* slike so simbolične

2/2-potni el.mag. ventil NC, vod. krm., 24 V DC, G 1/2

SKU: 116557RIE
EAN: 4047322325080

2/2-way solenoid valve, Brass, NC, pilot operated, 24 V DC, Medium temperature max. 80 °C / 90 °C, G 1/2, PN 0.5 - 10 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

For all applications with compressed air, neutral gases or low-viscosity, neutral media.

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Čas dobave: Predvidoma 3 - 5 dni
102,31 €
ali od 18,67 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 18,67 € x 6 mesecev
  • 36,93 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj DN B [mm] C [mm] Zaloga Cena Nakup Natisni
116561RIE G 1 25 92.0 124.0
Čas dobave: Predvidoma 3 - 5 dni
142,18 € Natisni
116559RIE G 3/4 20 82.0 115.4
Čas dobave: Predvidoma 3 - 5 dni
123,88 € Natisni
116557RIE G 1/2 15 70.0 107.0
Čas dobave: Predvidoma 3 - 5 dni
102,31 € Natisni

Opis

2/2-way solenoid valve, Brass, NC, pilot operated, 24 V DC, Medium temperature max. 80 °C / 90 °C, G 1/2, PN 0.5 - 10 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

For all applications with compressed air, neutral gases or low-viscosity, neutral media.

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Tehnični podatki in specifikacije

IP zaščita IP 65
Min. obratovalni tlak [bar] 0.5
Max. obratovalni tlak [bar] 10
Ohišje Brass
Sedež ventila Brass
Notranji deli Stainless steel
Tesnilo FPM
Navoj G 1/2
Vrsta 3
Standardni navoj G thread acc. to DIN EN ISO 228-1
A [mm] 70.0
B [mm] 70.0
C [mm] 107.0
DN 15
