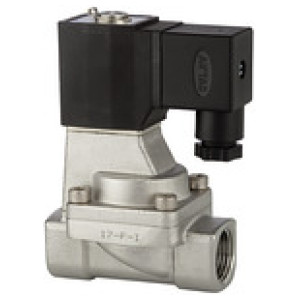

2/2-potni el.mag. ventil NC, vod. krm., 230 V, 50 Hz slika
2/2-potni el.mag. ventil NC, vod. krm., 230 V, 50 Hz slika

* slike so simbolične

2/2-potni el.mag. ventil NC, vod. krm., 230 V, 50 Hz

SKU: 116556RIE
EAN: 4047322324298

2/2-way solenoid valve, Stainless steel, NC, pilot operated, 230 V, 50 Hz, Medium temp. max. 80°C/90°C, G 1, PN 0.5 - 10 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Čas dobave: Predvidoma 3 - 5 dni
218,67 €
ali od 10,71 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,71 € x 24 mesecev
  • 20,49 € x 12 mesecev
  • 40,09 € x 6 mesecev
  • 79,29 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj DN B [mm] C [mm] Zaloga Cena Nakup Natisni
116552RIE G 1/2 15 70.0 107.0
Čas dobave: Predvidoma 3 - 5 dni
142,35 € Natisni
116554RIE G 3/4 20 82.0 115.4
Čas dobave: Predvidoma 3 - 5 dni
175,01 € Natisni
116556RIE G 1 25 92.0 124.0
Čas dobave: Predvidoma 3 - 5 dni
218,67 € Natisni

Opis

2/2-way solenoid valve, Stainless steel, NC, pilot operated, 230 V, 50 Hz, Medium temp. max. 80°C/90°C, G 1, PN 0.5 - 10 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Tehnični podatki in specifikacije

IP zaščita IP 65
Min. obratovalni tlak [bar] 0.5
Max. obratovalni tlak [bar] 10
Ohišje Stainless steel 1.4301
Sedež ventila Stainless steel 1.4301
Notranji deli Stainless steel
Tesnilo FPM
Navoj G 1
Vrsta 3
Standardni navoj G thread acc. to DIN EN ISO 228-1
A [mm] 70.0
B [mm] 92.0
C [mm] 124.0
DN 25
