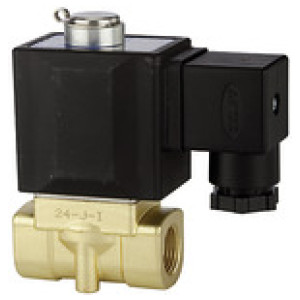

2/2-potni el.mag. ventil NO, direk. upr., 230 V, 50 Hz
SKU: 116539RIE
EAN: 4047322324717
2/2-way solenoid valve, Brass, NO, directly operated, 230 V, 50 Hz, Medium temp. max. 80 °C / 90 °C, G 3/8, PN 0 - 7 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Povpraševanje
Navoj: G 3/8
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass
Standardni navoj: G thread acc. to DIN EN ISO 228-1

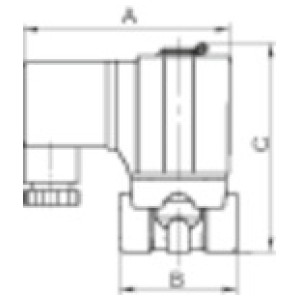

| Šifra | Navoj | DN | B [mm] | A [mm] | C [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 116535RIE | G 1/8 | 3 | 40.0 | 70.0 | 76.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 116537RIE | G 1/4 | 3 | 40.0 | 70.0 | 76.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116539RIE | G 3/8 | 5 | 52.0 | 85.0 | 92.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116541RIE | G 1/2 | 5 | 52.0 | 85.0 | 92.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
2/2-way solenoid valve, Brass, NO, directly operated, 230 V, 50 Hz, Medium temp. max. 80 °C / 90 °C, G 3/8, PN 0 - 7 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 |
| Max. obratovalni tlak [bar] | 7 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Navoj | G 3/8 |
| Vrsta | 2 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| A [mm] | 85.0 |
| B [mm] | 52.0 |
| C [mm] | 92.0 |
| DN | 5 |
