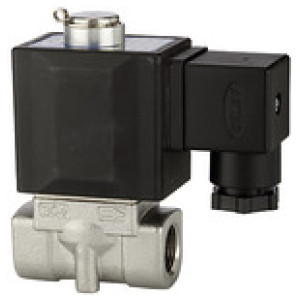

2/2-potni el.mag. ventil NO, direk. upr., 24 V DC

SKU: 116606RIE
EAN: 4047322324243

2/2-way solenoid valve, Stainless steel, NO, directly operated, 24 V DC, Medium temp. max. 80 °C/90 °C, G 1/2, PN 0 - 20 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Čas dobave: Predvidoma 3 - 5 dni
121,27 €
ali od 11,32 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 11,32 € x 12 mesecev
  • 22,15 € x 6 mesecev
  • 43,81 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj DN B [mm] A [mm] C [mm] Zaloga Cena Nakup Natisni
116602RIE G 1/4 1.5 40.0 70.0 76.0
Čas dobave: Predvidoma 3 - 5 dni
86,63 € Natisni
116604RIE G 3/8 3 52.0 85.0 92.0
Čas dobave: Predvidoma 3 - 5 dni
121,27 € Natisni
116600RIE G 1/8 1.5 40.0 70.0 76.0
Čas dobave: Predvidoma 3 - 5 dni
86,63 € Natisni
116606RIE G 1/2 3 52.0 85.0 92.0
Čas dobave: Predvidoma 3 - 5 dni
121,27 € Natisni

Opis

2/2-way solenoid valve, Stainless steel, NO, directly operated, 24 V DC, Medium temp. max. 80 °C/90 °C, G 1/2, PN 0 - 20 bar

Standard series available in two different versions:

-Directly operated

-Pilot-operated

Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.

Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.

Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.

Tehnični podatki in specifikacije

IP zaščita IP 65
Max. obratovalni tlak [bar] 20
Ohišje Stainless steel 1.4301
Sedež ventila Stainless steel 1.4301
Notranji deli Stainless steel
Tesnilo FPM
Navoj G 1/2
Vrsta 2
Standardni navoj G thread acc. to DIN EN ISO 228-1
A [mm] 85.0
B [mm] 52.0
C [mm] 92.0
DN 3
