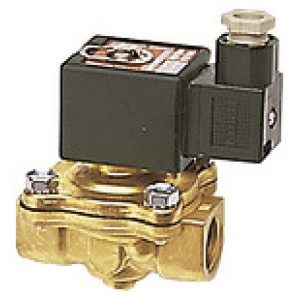

2/2-potni el.mag. ventil, NO, prisil. vod. krm., 24 V DC, 3/4
SKU: 102853RIE
EAN: 4047322160230
2/2-way solenoid valve brass, NO, force pilot operated, 24 V DC, Rp 3/4, NBR, Medium temp. -20 °C to 85 °C, PN 0 - 9 bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
2/2-potni el.mag. ventil, NO, prisil. vod. krm., 24 V DC, 3/4
Električni priključek: ISO 4400; cable socket (Pg 11P)
Ffunkcija: normally open (NO)
IP zaščita: IP65 (with connector socket fitted)
Navoj: Rp 3/4
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass
Standardni navoj: Rp thread acc. to ISO 7-1
Ffunkcija: normally open (NO)
IP zaščita: IP65 (with connector socket fitted)
Navoj: Rp 3/4
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass
Standardni navoj: Rp thread acc. to ISO 7-1
| Šifra | Navoj | Tesnilo | DN | Max. temperatura medija [°C] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 102853RIE | Rp 3/4 | NBR | 19 | 85 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 136152RIE | Rp 3/8 | FKM | 16 | 120 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 102851RIE | Rp 3/8 | NBR | 16 | 85 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 102852RIE | Rp 1/2 | NBR | 16 | 85 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 136153RIE | Rp 1/2 | FKM | 16 | 120 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 136154RIE | Rp 3/4 | FKM | 19 | 120 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
2/2-way solenoid valve brass, NO, force pilot operated, 24 V DC, Rp 3/4, NBR, Medium temp. -20 °C to 85 °C, PN 0 - 9 bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 9 |
| Električni priključek | ISO 4400; cable socket (Pg 11P) |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 50 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 85 |
| Navoj | Rp 3/4 |
| Vrsta | 3 |
| Ffunkcija | normally open (NO) |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| DN | 19 |

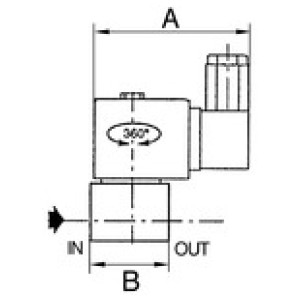

| A [mm] | 80.0 |
| B [mm] | 70.0 |
