* slike so simbolične

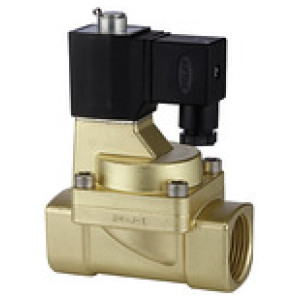

2/2-potni el.mag. ventil NO, vod. krm., 24 V DC, G 1
SKU: 116573RIE
EAN: 4047322325165
2/2-way solenoid valve, Brass, NO, pilot operated, 24 V DC, Medium temperature max. 80 °C / 90 °C, G 1, PN 0.5 - 7 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Povpraševanje
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass
Standardni navoj: G thread acc. to DIN EN ISO 228-1

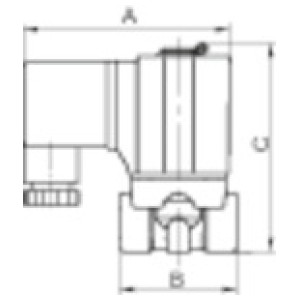

C [mm]: 129.3
| Šifra | Navoj | DN | B [mm] | C [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 116569RIE | G 1/2 | 15 | 70.0 | 112.3 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 116571RIE | G 3/4 | 20 | 82.0 | 120.8 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116573RIE | G 1 | 25 | 82.0 | 129.3 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
2/2-way solenoid valve, Brass, NO, pilot operated, 24 V DC, Medium temperature max. 80 °C / 90 °C, G 1, PN 0.5 - 7 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 |
| Min. obratovalni tlak [bar] | 0.5 |
| Max. obratovalni tlak [bar] | 7 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Navoj | G 1 |
| Vrsta | 4 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| A [mm] | 70.0 |
| B [mm] | 82.0 |
| C [mm] | 129.3 |
| DN | 25 |
