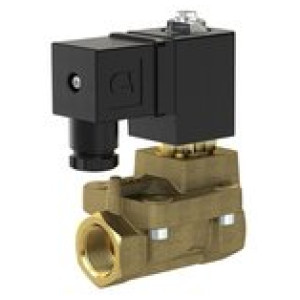

2/2 solenoid valve, NC, G1, PN 0.5-16, NBR, pilot-opera., 110V AC slika

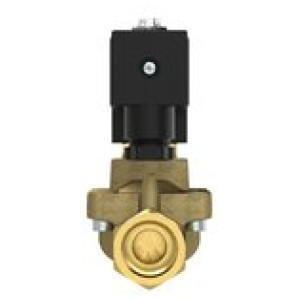

2/2 solenoid valve, NC, G1, PN 0.5-16, NBR, pilot-opera., 110V AC slika

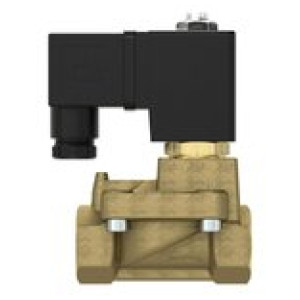

2/2 solenoid valve, NC, G1, PN 0.5-16, NBR, pilot-opera., 110V AC slika

* slike so simbolične

2/2 solenoid valve, NC, G1, PN 0.5-16, NBR, pilot-opera., 110V AC

SKU: 129555RIE
EAN: 4047322732253

2/2-way solenoid valve, NC, Brass, G1, DN25, PN 0.5-16, NBR, pilot-operated, 110V AC, Med.temp -20 to 85, Ambi.temp -10 to 50

In many areas, such as plant engineering, process technology or filling technology, solenoid valves are an optimum solution for control and regulation of fluids. With this professional standard series, RIEGLER offers fluid valves designed in Germany and produced in Europe. A consistently managed modular system guarantees a broad spectrum of possible valve forms in regards to sealing materials or valve bodies. If you cannot find your required specification in our standard products, please contact us.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Min. temperatura medija [°C] Navoj Tesnilo DN Max. obratovalni tlak [bar] C [mm] A [mm] Max. temperatura medija [°C] B [mm] Napetost Zaloga Cena Nakup Natisni
129553RIE -20 G 1/2 NBR 13 16 48.0 67.0 85 103.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129518RIE -15 G 1/2 FPM 13 16 48.0 67.0 100 103.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129498RIE -15 G 3/4 FPM 20 16 70.0 95.0 100 124.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129512RIE -15 G 3/4 FPM 20 16 70.0 95.0 100 124.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129511RIE -15 G 1/2 FPM 13 16 48.0 67.0 100 103.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129515RIE -15 G 1 1/2 FPM 40 12 96.0 132.0 100 145.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129501RIE -15 G 1 1/2 FPM 40 12 96.0 132.0 100 145.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129551RIE -20 G 2 NBR 50 10 112.0 160.0 85 163.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129547RIE -20 G 3/4 NBR 20 16 70.0 95.0 85 124.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129522RIE -15 G 1 1/2 FPM 40 12 96.0 132.0 100 145.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129536RIE -20 G 1 1/2 NBR 40 12 96.0 132.0 85 145.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129517RIE -15 G 3/8 FPM 13 16 48.0 67.0 100 103.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129535RIE -20 G 1 1/4 NBR 32 12 96.0 132.0 85 145.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129537RIE -20 G 2 NBR 50 10 112.0 160.0 85 163.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129521RIE -15 G 1 1/4 FPM 32 12 96.0 132.0 100 145.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129548RIE -20 G 1 NBR 25 16 70.0 95.0 85 124.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129519RIE -15 G 3/4 FPM 20 16 70.0 95.0 100 124.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129545RIE -20 G 3/8 NBR 13 16 48.0 67.0 85 103.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129510RIE -15 G 3/8 FPM 13 16 48.0 67.0 100 103.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129556RIE -20 G 1 1/4 NBR 32 12 96.0 132.0 85 145.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129499RIE -15 G 1 FPM 25 16 70.0 95.0 100 124.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129549RIE -20 G 1 1/4 NBR 32 12 96.0 132.0 85 145.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129558RIE -20 G 2 NBR 50 10 112.0 160.0 85 163.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129554RIE -20 G 3/4 NBR 20 16 70.0 95.0 85 124.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129520RIE -15 G 1 FPM 25 16 70.0 95.0 100 124.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129533RIE -20 G 3/4 NBR 20 16 70.0 95.0 85 124.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129555RIE -20 G 1 NBR 25 16 70.0 95.0 85 124.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129516RIE -15 G 2 FPM 50 10 112.0 160.0 100 163.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129550RIE -20 G 1 1/2 NBR 40 12 96.0 132.0 85 145.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129513RIE -15 G 1 FPM 25 16 70.0 95.0 100 124.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129546RIE -20 G 1/2 NBR 13 16 48.0 67.0 85 103.0 24V AC
Ni na zalogi
? Povpraševanje Natisni
129496RIE -15 G 3/8 FPM 13 16 48.0 67.0 100 103.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129534RIE -20 G 1 NBR 25 16 70.0 95.0 85 124.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129523RIE -15 G 2 FPM 50 10 112.0 160.0 100 163.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129497RIE -15 G 1/2 FPM 13 16 48.0 67.0 100 103.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129531RIE -20 G 3/8 NBR 13 16 48.0 67.0 85 103.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129552RIE -20 G 3/8 NBR 13 16 48.0 67.0 85 103.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129500RIE -15 G 1 1/4 FPM 32 12 96.0 132.0 100 145.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129502RIE -15 G 2 FPM 50 10 112.0 160.0 100 163.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129532RIE -20 G 1/2 NBR 13 16 48.0 67.0 85 103.0 230V AC
Ni na zalogi
? Povpraševanje Natisni
129557RIE -20 G 1 1/2 NBR 40 12 96.0 132.0 85 145.0 110V AC
Ni na zalogi
? Povpraševanje Natisni
129514RIE -15 G 1 1/4 FPM 32 12 96.0 132.0 100 145.0 24V AC
Ni na zalogi
? Povpraševanje Natisni

Opis

2/2-way solenoid valve, NC, Brass, G1, DN25, PN 0.5-16, NBR, pilot-operated, 110V AC, Med.temp -20 to 85, Ambi.temp -10 to 50

In many areas, such as plant engineering, process technology or filling technology, solenoid valves are an optimum solution for control and regulation of fluids. With this professional standard series, RIEGLER offers fluid valves designed in Germany and produced in Europe. A consistently managed modular system guarantees a broad spectrum of possible valve forms in regards to sealing materials or valve bodies. If you cannot find your required specification in our standard products, please contact us.

Tehnični podatki in specifikacije

IP zaščita IP65 (with connector socket fitted)
Min. obratovalni tlak [bar] 0.5
Max. obratovalni tlak [bar] 16
Električni priključek Connector socket, industrial standard type A – EN 175301-803-A
Ohišje Brass
Sedež ventila Brass and stainless steel
Notranji deli Brass and stainless steel
Tesnilo NBR
Min. sobna temperatura [°C] -10
Max. sobna temperatura [°C] 50
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 85
Navoj G 1
Ffunkcija normally closed (NC)
Standardni navoj G thread acc. to DIN EN ISO 228-1
DN 25
A [mm] 95.0
B [mm] 124.0
Napetost 110V AC
C [mm] 70.0
