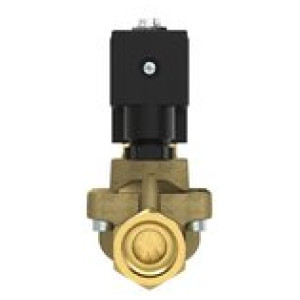

2/2 solenoid valve, NO, G112, PN 0.5-10, NBR, pilot-opera. 12V DC slika

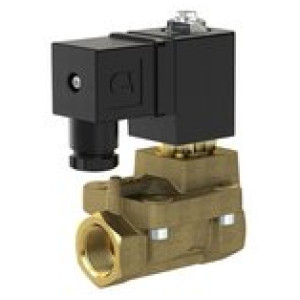

2/2 solenoid valve, NO, G112, PN 0.5-10, NBR, pilot-opera. 12V DC slika
2/2 solenoid valve, NO, G112, PN 0.5-10, NBR, pilot-opera. 12V DC slika

* slike so simbolične

2/2 solenoid valve, NO, G112, PN 0.5-10, NBR, pilot-opera. 12V DC

SKU: 129634RIE
EAN: 4047322733045

2/2-way solenoid valve, NO, Brass, G112, DN40, PN 0.5-10, NBR, pilot-operated, 12V DC, Med.temp -20 to 85, Ambi.temp -10 to 50

In many areas, such as plant engineering, process technology or filling technology, solenoid valves are an optimum solution for control and regulation of fluids. With this professional standard series, RIEGLER offers fluid valves designed in Germany and produced in Europe. A consistently managed modular system guarantees a broad spectrum of possible valve forms in regards to sealing materials or valve bodies. If you cannot find your required specification in our standard products, please contact us.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Min. temperatura medija [°C] Navoj Tesnilo Max. obratovalni tlak [bar] Napetost DN C [mm] Max. temperatura medija [°C] A [mm] B [mm] Zaloga Cena Nakup Natisni
129578RIE -15 G 1 1/2 FPM 10 24V DC 40 96.0 100 132.0 145.0
Ni na zalogi
? Povpraševanje Natisni
129598RIE -15 G 1 1/4 FPM 10 12V DC 32 96.0 100 132.0 145.0
Ni na zalogi
? Povpraševanje Natisni
129597RIE -15 G 1 FPM 12 12V DC 25 70.0 100 95.0 124.0
Ni na zalogi
? Povpraševanje Natisni
129611RIE -20 G 1 NBR 12 24V DC 25 70.0 85 95.0 124.0
Ni na zalogi
? Povpraševanje Natisni
129630RIE -20 G 1/2 NBR 12 12V DC 13 48.0 85 67.0 103.0
Ni na zalogi
? Povpraševanje Natisni
129635RIE -20 G 2 NBR 10 12V DC 50 112.0 85 160.0 163.0
Ni na zalogi
? Povpraševanje Natisni
129595RIE -15 G 1/2 FPM 12 12V DC 13 48.0 100 67.0 103.0
Ni na zalogi
? Povpraševanje Natisni
129596RIE -15 G 3/4 FPM 12 12V DC 20 70.0 100 95.0 124.0
Ni na zalogi
? Povpraševanje Natisni
129576RIE -15 G 1 FPM 12 24V DC 25 70.0 100 95.0 124.0
Ni na zalogi
? Povpraševanje Natisni
129573RIE -15 G 3/8 FPM 12 24V DC 13 48.0 100 67.0 103.0
Ni na zalogi
? Povpraševanje Natisni
129609RIE -20 G 1/2 NBR 12 24V DC 13 48.0 85 67.0 103.0
Ni na zalogi
? Povpraševanje Natisni
129599RIE -15 G 1 1/2 FPM 10 12V DC 40 96.0 100 132.0 145.0
Ni na zalogi
? Povpraševanje Natisni
129600RIE -15 G 2 FPM 10 12V DC 50 112.0 100 160.0 163.0
Ni na zalogi
? Povpraševanje Natisni
129577RIE -15 G 1 1/4 FPM 10 24V DC 32 96.0 100 132.0 145.0
Ni na zalogi
? Povpraševanje Natisni
129579RIE -15 G 2 FPM 10 24V DC 50 112.0 100 160.0 163.0
Ni na zalogi
? Povpraševanje Natisni
129610RIE -20 G 3/4 NBR 12 24V DC 20 70.0 85 95.0 124.0
Ni na zalogi
? Povpraševanje Natisni
129629RIE -20 G 3/8 NBR 12 12V DC 13 48.0 85 67.0 103.0
Ni na zalogi
? Povpraševanje Natisni
129633RIE -20 G 1 1/4 NBR 10 12V DC 32 96.0 85 132.0 145.0
Ni na zalogi
? Povpraševanje Natisni
129574RIE -15 G 1/2 FPM 12 24V DC 13 48.0 100 67.0 103.0
Ni na zalogi
? Povpraševanje Natisni
129632RIE -20 G 1 NBR 12 12V DC 25 70.0 85 95.0 124.0
Ni na zalogi
? Povpraševanje Natisni
129612RIE -20 G 1 1/4 NBR 10 24V DC 32 96.0 85 132.0 145.0
Ni na zalogi
? Povpraševanje Natisni
129575RIE -15 G 3/4 FPM 12 24V DC 20 70.0 100 95.0 124.0
Ni na zalogi
? Povpraševanje Natisni
129608RIE -20 G 3/8 NBR 12 24V DC 13 48.0 85 67.0 103.0
Ni na zalogi
? Povpraševanje Natisni
129594RIE -15 G 3/8 FPM 12 12V DC 13 48.0 100 67.0 103.0
Ni na zalogi
? Povpraševanje Natisni
129613RIE -20 G 1 1/2 NBR 10 24V DC 40 96.0 85 132.0 145.0
Ni na zalogi
? Povpraševanje Natisni
129631RIE -20 G 3/4 NBR 12 12V DC 20 70.0 85 95.0 124.0
Ni na zalogi
? Povpraševanje Natisni
129614RIE -20 G 2 NBR 10 24V DC 50 112.0 85 160.0 163.0
Ni na zalogi
? Povpraševanje Natisni
129634RIE -20 G 1 1/2 NBR 10 12V DC 40 96.0 85 132.0 145.0
Ni na zalogi
? Povpraševanje Natisni

Opis

2/2-way solenoid valve, NO, Brass, G112, DN40, PN 0.5-10, NBR, pilot-operated, 12V DC, Med.temp -20 to 85, Ambi.temp -10 to 50

In many areas, such as plant engineering, process technology or filling technology, solenoid valves are an optimum solution for control and regulation of fluids. With this professional standard series, RIEGLER offers fluid valves designed in Germany and produced in Europe. A consistently managed modular system guarantees a broad spectrum of possible valve forms in regards to sealing materials or valve bodies. If you cannot find your required specification in our standard products, please contact us.

Tehnični podatki in specifikacije

IP zaščita IP65 (with connector socket fitted)
Min. obratovalni tlak [bar] 0.5
Max. obratovalni tlak [bar] 10
Električni priključek Connector socket, industrial standard type A – EN 175301-803-A
Ohišje Brass
Sedež ventila Brass and stainless steel
Notranji deli Brass and stainless steel
Tesnilo NBR
Min. sobna temperatura [°C] -10
Max. sobna temperatura [°C] 50
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 85
Navoj G 1 1/2
Ffunkcija normally open (NO)
Standardni navoj G thread acc. to DIN EN ISO 228-1
DN 40
A [mm] 132.0
B [mm] 145.0
Napetost 12V DC
C [mm] 96.0
