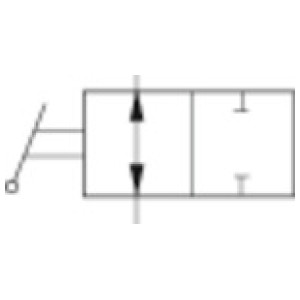

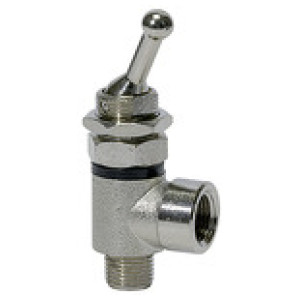

2/2-way toggle lever valve, both sides, screw connection, G 1/8

SKU: 107009RIE
EAN: 4047322181204

2/2-way toggle lever valve, both sides, screw connection for hose G 1/8 IT, G 1/8, PN max. 8 bar, Temperature -20 °C to 80 °C

Manually operated toggle valve, 2/2-way types. For all applications where compressed air must be switched on or off quickly and easily or a cylinder operated manually. Designed as a banjo-type valve with a hollow bolt and ring piece. Suitable for screwing directly into the equipment or for panel mounting. Compact type of construction, also ideal where space is restricted.

Čas dobave 3 - 5 dni
35,50 €
Primerjaj z ostalimi
Šifra Navoj Za cevi [mm] a/f [mm] C [mm] B [mm] Zaloga Cena Nakup Natisni
107009RIE G 1/8 G 1/8 female thread 14 16.0 55.0
Čas dobave 3 - 5 dni
35,50 € Natisni
107013RIE G 1/4 G 1/4 female thread 17 22.0 60.0
Čas dobave 3 - 5 dni
40,02 € Natisni

Opis

2/2-way toggle lever valve, both sides, screw connection for hose G 1/8 IT, G 1/8, PN max. 8 bar, Temperature -20 °C to 80 °C

Manually operated toggle valve, 2/2-way types. For all applications where compressed air must be switched on or off quickly and easily or a cylinder operated manually. Designed as a banjo-type valve with a hollow bolt and ring piece. Suitable for screwing directly into the equipment or for panel mounting. Compact type of construction, also ideal where space is restricted.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 8
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 80
Votli vijak Nickel-plated brass
Nihajna roka Nickel-plated brass
Notranji deli Brass with a bare metal surface
Tesnilo NBR
Zarobljena tesnila Polyamide (glass fibre-reinforced)
Preklop Nickel-plated brass
Navoj G 1/8
Povezava Discharge port on both sides
Za cevi [mm] G 1/8 female thread
B [mm] 55.0
C [mm] 16.0
a/f [mm] 14
Navoj za pritrditev plošče M12x0.75 (max. plate thickness 4 mm)
Ffunkcija 2/2-way
Vrsta povezave Screw connection
