2/3 Priklj. za cev G3/4x10 Ü maticaravna težka razl. MS
SKU: 146168RIE
EAN: 4047322580625

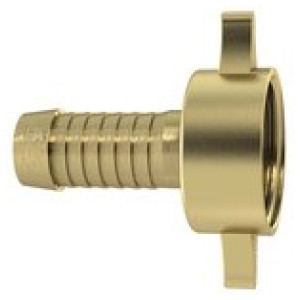

2/3 Tube fitting, G 3/4 x 10 mm, swivel nut, taper seat, heavy-duty type, Brass with a bare metal surface
Čas dobave: Predvidoma 3 - 5 dni
Opis
2/3 Tube fitting, G 3/4 x 10 mm, swivel nut, taper seat, heavy-duty type, Brass with a bare metal surface
Tehnični podatki in specifikacije
Max. obratovalni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -10 |
Max. delovna temperatura [°C] | 100 |
Navoj | G 3/4 |
Za cevi [mm] | 10 |

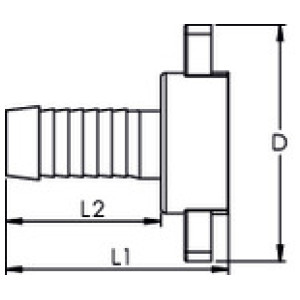

L1 [mm] | 42.0 |
L2 [mm] | 28.0 |
Material | Brass CW614N |
D [mm] | 49.0 |
Različica | Swivel nut |
