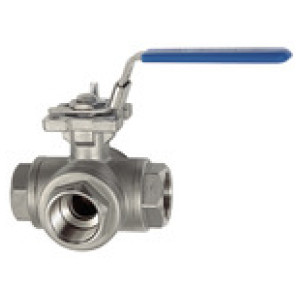

3-pot. krog. ventil, L-izpust, ner.jeklo 1.4408, G1/2, DN 15
SKU: 135922RIE
EAN: 4047322501644
3-way ball valve, L-hole, Stainless steel 1.4408, G 1/2, DN 15, Operating temperature -20 °C to 180 °C, PN max. 63 bar
With L or T-bore, reduced bore.
Version for sealing on all sides with integrated ISO flange plate (ISO 5211).
The lever can be turned 360° to allow several switching variants.
Obrestno financiranje
- 17,22 € x 12 mesecev
- 33,68 € x 6 mesecev
- 66,61 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

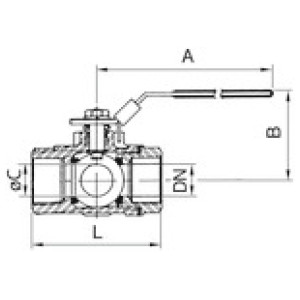

Šifra | ISO 5211 | Navoj | H2 [mm] | DN | C Ø [mm] | H1 [mm] | L [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
135921RIE | F 04 | G 3/8 | 9.0 | 10 | 11.0 | 38.2 | 75.7 | 77.5 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 180,90 € | ||
135924RIE | F 05 | G 1 | 11.0 | 25 | 20.0 | 56.5 | 102.4 | 93.7 | 136.5 | Čas dobave: Predvidoma 3 - 5 dni | 300,46 € | ||
135923RIE | F 04 | G 3/4 | 9.0 | 20 | 16.0 | 45.2 | 86.6 | 82.0 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 236,94 € | ||
135925RIE | F 05 | G 1 1/4 | 11.0 | 32 | 25.0 | 61.9 | 118.2 | 101.1 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 433,59 € | ||
135927RIE | F 07 | G 2 | 14.0 | 50 | 38.1 | 87.4 | 149.0 | 129.9 | 197.5 | Čas dobave: Predvidoma 3 - 5 dni | 763,71 € | ||
135920RIE | F 04 | G 1/4 | 9.0 | 8 | 11.0 | 38.2 | 75.7 | 77.5 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 180,90 € | ||
135926RIE | F 07 | G 1 1/2 | 14.3 | 40 | 32.0 | 78.3 | 125.8 | 120.3 | 197.5 | Čas dobave: Predvidoma 3 - 5 dni | 522,94 € | ||
135922RIE | F 04 | G 1/2 | 9.0 | 15 | 12.7 | 38.2 | 75.7 | 77.5 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 184,38 € |
Opis
3-way ball valve, L-hole, Stainless steel 1.4408, G 1/2, DN 15, Operating temperature -20 °C to 180 °C, PN max. 63 bar
With L or T-bore, reduced bore.
Version for sealing on all sides with integrated ISO flange plate (ISO 5211).
The lever can be turned 360° to allow several switching variants.
Tehnični podatki in specifikacije
Ohišje | Stainless steel 1.4408 |
Bore diameter padlock | ca. 7.9 |
Krogla | Stainless steel 1.4401 |
Krogelno tesnilo | RTFE (15 % glass fibre reinforced PTFE) |
Stebelno tesnilo | RTFE (15 % glass fibre reinforced PTFE) |
Ročica | Stainless steel 1.4301, with plastic coating |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 180 |
Delovni tlak | 63 bar (dependent on temperature) |
Navoj | G 1/2 |
DN | 15 |
Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
ISO 5211 | F 04 |
A [mm] | 112.0 |
B [mm] | 77.5 |
L [mm] | 75.7 |
C Ø [mm] | 12.7 |
H1 [mm] | 38.2 |
H2 [mm] | 9.0 |
