* slike so simbolične

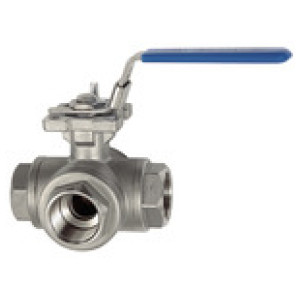

3-pot. krog. ventil, T-izpust, ner.jeklo 1.4408, G 1/4, DN 8
SKU: 135928RIE
EAN: 4047322501705
3-way ball valve, T-hole, Stainless steel 1.4408, G 1/4, DN 8, Operating temperature -20 °C to 180 °C, PN max. 63 bar
With L or T-bore, reduced bore.
Version for sealing on all sides with integrated ISO flange plate (ISO 5211).
The lever can be turned 360° to allow several switching variants.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
3-pot. krog. ventil, T-izpust, ner.jeklo 1.4408, G 1/4, DN 8
Bore diameter padlock: ca. 7.9
Krogelno tesnilo: RTFE (15 % glass fibre reinforced PTFE)
Krogla: Stainless steel 1.4401
Navoj: G 1/4
Ohišje: Stainless steel 1.4408
Ročica: Stainless steel 1.4301, with plastic coating
Standardni navoj: G thread acc. to DIN EN ISO 228-1
Stebelno tesnilo: RTFE (15 % glass fibre reinforced PTFE)
Delovni tlak: 63 bar (dependent on temperature)
A [mm]: 112.0
Krogelno tesnilo: RTFE (15 % glass fibre reinforced PTFE)
Krogla: Stainless steel 1.4401
Navoj: G 1/4
Ohišje: Stainless steel 1.4408
Ročica: Stainless steel 1.4301, with plastic coating
Standardni navoj: G thread acc. to DIN EN ISO 228-1
Stebelno tesnilo: RTFE (15 % glass fibre reinforced PTFE)
Delovni tlak: 63 bar (dependent on temperature)
A [mm]: 112.0
Aktivni filtri - 0

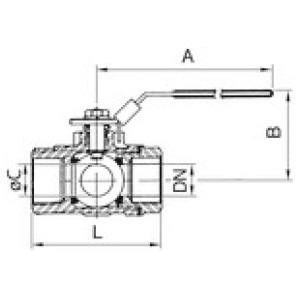

| Šifra | ISO 5211 | Navoj | H2 [mm] | C Ø [mm] | DN | H1 [mm] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 135928RIE | F 04 | G 1/4 | 9.0 | 11.0 | 8 | 38.2 | 77.5 | 75.7 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 135929RIE | F 04 | G 3/8 | 9.0 | 11.0 | 10 | 38.2 | 77.5 | 75.7 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 135930RIE | F 04 | G 1/2 | 9.0 | 12.7 | 15 | 38.2 | 77.5 | 75.7 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 135931RIE | F 04 | G 3/4 | 9.0 | 16.0 | 20 | 45.2 | 82.0 | 86.6 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 135932RIE | F 05 | G 1 | 11.0 | 20.0 | 25 | 56.5 | 93.7 | 102.4 | 136.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 135933RIE | F 05 | G 1 1/4 | 11.0 | 25.0 | 32 | 61.9 | 101.1 | 118.2 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 135934RIE | F 07 | G 1 1/2 | 14.3 | 32.0 | 40 | 78.3 | 120.3 | 125.8 | 197.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 135935RIE | F 07 | G 2 | 14.0 | 38.1 | 50 | 87.4 | 129.9 | 149.0 | 197.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 8 od 8 zapisov
Opis
3-way ball valve, T-hole, Stainless steel 1.4408, G 1/4, DN 8, Operating temperature -20 °C to 180 °C, PN max. 63 bar
With L or T-bore, reduced bore.
Version for sealing on all sides with integrated ISO flange plate (ISO 5211).
The lever can be turned 360° to allow several switching variants.
Tehnični podatki in specifikacije
| Ohišje | Stainless steel 1.4408 |
| Bore diameter padlock | ca. 7.9 |
| Krogla | Stainless steel 1.4401 |
| Krogelno tesnilo | RTFE (15 % glass fibre reinforced PTFE) |
| Stebelno tesnilo | RTFE (15 % glass fibre reinforced PTFE) |
| Ročica | Stainless steel 1.4301, with plastic coating |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 180 |
| Delovni tlak | 63 bar (dependent on temperature) |
| Navoj | G 1/4 |
| DN | 8 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| ISO 5211 | F 04 |
| A [mm] | 112.0 |
| B [mm] | 77.5 |
| L [mm] | 75.7 |
| C Ø [mm] | 11.0 |
| H1 [mm] | 38.2 |
| H2 [mm] | 9.0 |
