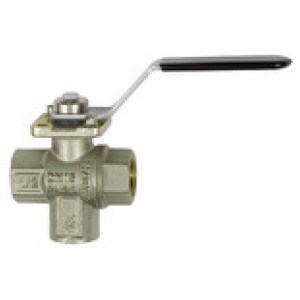

3-potni krogelni ventil, nikljana medenina, T-izpust, Rp 3/4
SKU: 136337RIE
EAN: 4047322504225
3-way ball valve, nickel-plated brass, Connection bottom, T-hole, Rp 3/4, DN 20, Operating temp. -15°C to 120°C, PN max. 16 bar
3-way ball valve with full throughput, integrated ISO flange plate (ISO 5211) and double-sided sealed ball.
Pressurisation is only possible via the lower connection.
Obrestno financiranje
- 15,56 € x 6 mesecev
- 30,78 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

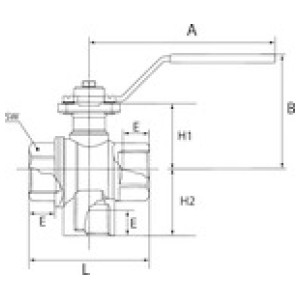

Šifra | Navoj | PN [bar] | E [mm] | DN | a/f [mm] | H1 [mm] | H2 [mm] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
136338RIE | Rp 1 | 16 | 19.1 | 25 | 41 | 45.0 | 47.0 | 76.0 | 89.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | 108,59 € | ||
136336RIE | Rp 1/2 | 25 | 15.0 | 15 | 27 | 31.0 | 33.5 | 62.0 | 64.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | 60,91 € | ||
136334RIE | Rp 1/4 | 25 | 11.0 | 8 | 22 | 28.5 | 26.0 | 60.0 | 52.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | 52,90 € | ||
136341RIE | Rp 2 | 10 | 25.7 | 50 | 70 | 67.0 | 73.0 | 101.0 | 130.0 | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | 368,61 € | ||
136340RIE | Rp 1 1/2 | 10 | 21.4 | 40 | 55 | 61.5 | 61.5 | 95.0 | 110.0 | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | 227,02 € | ||
136339RIE | Rp 1 1/4 | 10 | 21.4 | 32 | 50 | 49.0 | 54.5 | 79.5 | 100.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | 170,53 € | ||
136335RIE | Rp 3/8 | 25 | 11.4 | 10 | 22 | 28.5 | 26.0 | 60.0 | 52.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | 52,90 € | ||
136337RIE | Rp 3/4 | 16 | 16.3 | 20 | 32 | 42.0 | 39.5 | 43.0 | 74.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | 84,90 € |
Opis
3-way ball valve, nickel-plated brass, Connection bottom, T-hole, Rp 3/4, DN 20, Operating temp. -15°C to 120°C, PN max. 16 bar
3-way ball valve with full throughput, integrated ISO flange plate (ISO 5211) and double-sided sealed ball.
Pressurisation is only possible via the lower connection.
Tehnični podatki in specifikacije
Ohišje | Nickel-plated brass (CW617N) |
Material navojev | Brass |
Krogla | Nickel-plated brass (CW617N) |
Krogelno tesnilo | PTFE |
Stebelno tesnilo | PTFE / FKM |
Ročica | Steel with plastic coating |
Min. delovna temperatura [°C] | -15 |
Max. delovna temperatura [°C] | 120 |
Navoj | Rp 3/4 |
DN | 20 |
a/f [mm] | 32 |
PN [bar] | 16 |
Standardni navoj | Rp thread acc. to ISO 7-1 |
A [mm] | 115.0 |
B [mm] | 43.0 |
L [mm] | 74.0 |
E [mm] | 16.3 |
H1 [mm] | 42.0 |
H2 [mm] | 39.5 |
