* slike so simbolične

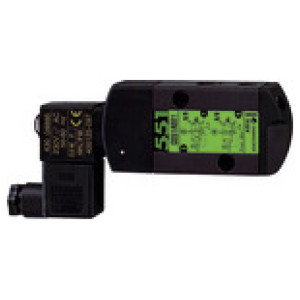

3/2-5/2-potni ventil, NAMUR, G 1/4 (1), G 1/8 (3+5), 230 V, 50 Hz
SKU: 103647RIE
EAN: 4047322100441
3/2-5/2-way valve, NAMUR, Anodised aluminium, Operating temp. -25 °C to 60 °C, 2 - 10 bar, G 1/4 (1), G 1/8 (3+5), 230 V, 50 Hz

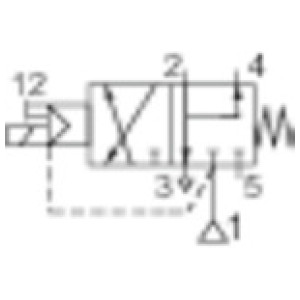

Pilot-operated 3/2 and 5/2-way spool valves with threaded port connections and a NAMUR style interface. The two conversion plates supplied with each valve allow the device to be adapted to a 3/2-way or 5/2-way function.
The valve is turned on by a continuous signal. Turning off causes the piston to be returned to its initial position under pressure. Includes a manual operator as standard.
Obrestno financiranje
- 16,56 € x 12 mesecev
- 32,40 € x 6 mesecev
- 64,08 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Napetost | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 103647RIE | 230 V, 50 Hz | Čas dobave: Predvidoma 3 - 5 dni | 176,73 € |  | |
| 103648RIE | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | 176,73 € | |
Opis
3/2-5/2-way valve, NAMUR, Anodised aluminium, Operating temp. -25 °C to 60 °C, 2 - 10 bar, G 1/4 (1), G 1/8 (3+5), 230 V, 50 Hz
Pilot-operated 3/2 and 5/2-way spool valves with threaded port connections and a NAMUR style interface. The two conversion plates supplied with each valve allow the device to be adapted to a 3/2-way or 5/2-way function.
The valve is turned on by a continuous signal. Turning off causes the piston to be returned to its initial position under pressure. Includes a manual operator as standard.
Tehnični podatki in specifikacije
| Povezava | G 1/4 (Port 1), G 1/8 (Port 3 and 5) |
| Min. delovna temperatura [°C] | -25 |
| Max. delovna temperatura [°C] | 60 |
| Ohišje | Aluminium, anodised black |
| Diferencialni tlak min. [bar] | 2 |
| Diferencialni tlak max. [bar] | 10 |
| Max. dovoljeni statični tlak [bar] | 10 |
| Ročno upravljanje | latching |
| DN | 6 |
| Napetost | 230 V, 50 Hz |
| Pretok [l/min] | 700 |
| Tesnilo | NBR and PUR |
| Srednje | Air, neutral gases (filtered) |
| Električni priključek | Connector socket Pg 9P, 3 x DIN 46244 / VDE 0580 |
