3/2-5/2-potni ventil NAMUR, G 3/8 (1), G 1/4 (3+5), 230 V, 50 Hz
SKU: 103651RIE
EAN: 4047322268929
3/2-5/2-way valve NAMUR, Alu, Temp. -5 °C to 50 °C, Working pressure 1.5-8 bar, Connection G 3/8 (1), G 1/4 (3 + 5), 230 V, 50 Hz
Pilot-operated 3/2 and 5/2-way spool valves with threaded ports and a NAMUR style interface.
Combines high-quality design with a low price.

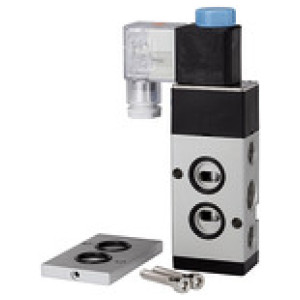

By adding the conversion plate supplied with each valve, the device can be adapted to a 3/2-way function.
The valve is turned on by a continuous signal. Turning off causes the piston to be returned to its initial position under pressure.
Includes a manual operator as standard.
Povpraševanje
Ohišje: Aluminium
Port 1: G 3/8
Port 3: G 1/4
Port 5: G 1/4
Ročno upravljanje: latching/non-latching
Srednje: Air, neutral gases (filtered)
Napetost: 230 V, 50 Hz
| Šifra | Port 1 | DN | Napetost | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 103651RIE | G 3/8 | 10 | 230 V, 50 Hz | 1650 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103652RIE | G 3/8 | 10 | 24 V DC | 1650 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 130277RIE | G 1/4 | 8 | 230 V, 50 Hz | 1370 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103649RIE | G 1/4 | 8 | 230 V, 50 Hz | 1370 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103650RIE | G 1/4 | 8 | 24 V DC | 1370 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 130278RIE | G 1/4 | 8 | 24 V DC | 1370 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
3/2-5/2-way valve NAMUR, Alu, Temp. -5 °C to 50 °C, Working pressure 1.5-8 bar, Connection G 3/8 (1), G 1/4 (3 + 5), 230 V, 50 Hz
Pilot-operated 3/2 and 5/2-way spool valves with threaded ports and a NAMUR style interface.
Combines high-quality design with a low price.
By adding the conversion plate supplied with each valve, the device can be adapted to a 3/2-way function.
The valve is turned on by a continuous signal. Turning off causes the piston to be returned to its initial position under pressure.
Includes a manual operator as standard.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | 1.5 |
| Max. delovni tlak [bar] | 8 |
| Min. delovna temperatura [°C] | -5 |
| Max. delovna temperatura [°C] | 50 |
| Port 1 | G 3/8 |
| Port 3 | G 1/4 |
| Port 5 | G 1/4 |
| Ohišje | Aluminium |
| Ročno upravljanje | latching/non-latching |
| DN | 10 |
| Napetost | 230 V, 50 Hz |
| Pretok [l/min] | 1650 |
| Tesnilo | NBR |
| Srednje | Air, neutral gases (filtered) |
| Električni priključek | Connector socket PG 9 with LED display |
