3/2 blokirni ventil »G«, Velikost 300, G 1/4
SKU: 116433RIE
EAN: 4047322308793

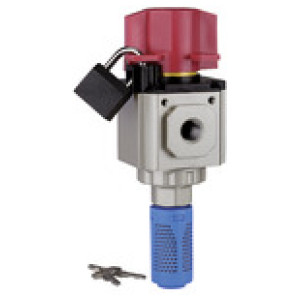

3/2-way blocking valve »G«, Mounting bracket, Padlock and silencer, Manually actuated, Size 300, G 1/4, Input pressure 0 - 9 bar
Rotary switch can be turned 90°, lockable.
The valve is used to switch off the air supply and is normally installed upstream of a pressure regulator, filter regulator or service unit.
When the valve is closed, the residual air on the P2 side is discharged into the atmosphere through the relief port on the bottom.
Šifra | Navoj | Odzračevalni vtič | D [mm] | A [mm] | C [mm] | B [mm] | Velikost | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
116434RIE | G 3/8 | G 3/8 | 46.0 | 51.0 | 66.5 | 112.5 | 300 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 43,03 € | | |
116435RIE | G 1/2 | G 3/8 | 46.0 | 51.0 | 66.5 | 112.5 | 300 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 43,03 € | | |
116437RIE | G 1/2 | G 1/2 | 58.5 | 63.0 | 75.5 | 134.0 | 400 | 6200 | Čas dobave: Predvidoma 3 - 5 dni | 59,73 € | | |
116436RIE | G 3/8 | G 1/2 | 58.5 | 63.0 | 75.5 | 134.0 | 400 | 6200 | Čas dobave: Predvidoma 3 - 5 dni | 59,73 € | | |
116433RIE | G 1/4 | G 3/8 | 46.0 | 51.0 | 66.5 | 112.5 | 300 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 43,03 € | |
Opis
3/2-way blocking valve »G«, Mounting bracket, Padlock and silencer, Manually actuated, Size 300, G 1/4, Input pressure 0 - 9 bar
Rotary switch can be turned 90°, lockable.
The valve is used to switch off the air supply and is normally installed upstream of a pressure regulator, filter regulator or service unit.
When the valve is closed, the residual air on the P2 side is discharged into the atmosphere through the relief port on the bottom.
Tehnični podatki in specifikacije
Navoj | G 1/4 |
Max. vhodni tlak [bar] | 9 |
Velikost | 300 |
Ohišje | Die-cast aluminium |
Tesnilo | NBR |
Max. temperatura medija [°C] | 70 |
Max. sobna temperatura [°C] | 70 |
Zasučni gumb | Plastics |
Pretok [l/min] | 1600 |
Odzračevalni vtič | G 3/8 |

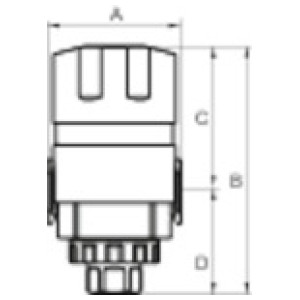

A [mm] | 51.0 |
B [mm] | 112.5 |
C [mm] | 66.5 |
D [mm] | 46.0 |
Serija | G |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
