3/2 blokirni ventil »G«, Velikost 400, G 1/2 slika
3/2 blokirni ventil »G«, Velikost 400, G 1/2 slika
3/2 blokirni ventil »G«, Velikost 400, G 1/2 slika

* slike so simbolične

3/2 blokirni ventil »G«, Velikost 400, G 1/2

SKU: 116437RIE
EAN: 4047322308830

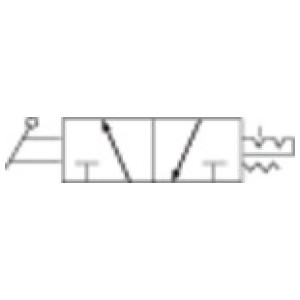

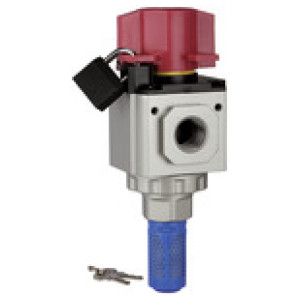

3/2-way blocking valve »G«, Mounting bracket, Padlock and silencer, Manually actuated, Size 400, G 1/2, Input pressure 0 - 9 bar

Rotary switch can be turned 90°, lockable.

The valve is used to switch off the air supply and is normally installed upstream of a pressure regulator, filter regulator or service unit.

When the valve is closed, the residual air on the P2 side is discharged into the atmosphere through the relief port on the bottom.

Čas dobave 3 - 5 dni
59,73 €
ali od 10,98 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,98 € x 6 mesecev
  • 21,72 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

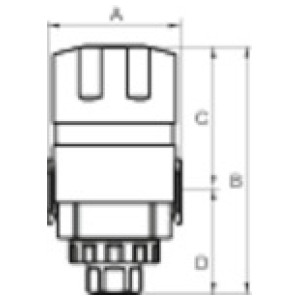

Šifra Navoj Odzračevalni vtič D [mm] A [mm] C [mm] B [mm] Velikost Pretok [l/min] Zaloga Cena Nakup Natisni
116434RIE G 3/8 G 3/8 46.0 51.0 66.5 112.5 300 2500
Čas dobave 3 - 5 dni
43,03 € Natisni
116435RIE G 1/2 G 3/8 46.0 51.0 66.5 112.5 300 2500
Čas dobave 3 - 5 dni
43,03 € Natisni
116437RIE G 1/2 G 1/2 58.5 63.0 75.5 134.0 400 6200
Čas dobave 3 - 5 dni
59,73 € Natisni
116436RIE G 3/8 G 1/2 58.5 63.0 75.5 134.0 400 6200
Čas dobave 3 - 5 dni
59,73 € Natisni
116433RIE G 1/4 G 3/8 46.0 51.0 66.5 112.5 300 1600
Čas dobave 3 - 5 dni
43,03 € Natisni

Opis

3/2-way blocking valve »G«, Mounting bracket, Padlock and silencer, Manually actuated, Size 400, G 1/2, Input pressure 0 - 9 bar

Rotary switch can be turned 90°, lockable.

The valve is used to switch off the air supply and is normally installed upstream of a pressure regulator, filter regulator or service unit.

When the valve is closed, the residual air on the P2 side is discharged into the atmosphere through the relief port on the bottom.

Tehnični podatki in specifikacije

Navoj G 1/2
Max. vhodni tlak [bar] 9
Velikost 400
Ohišje Die-cast aluminium
Tesnilo NBR
Max. temperatura medija [°C] 70
Max. sobna temperatura [°C] 70
Zasučni gumb Plastics
Pretok [l/min] 6200
Odzračevalni vtič G 1/2
A [mm] 63.0
B [mm] 134.0
C [mm] 75.5
D [mm] 58.5
Serija G
Merjenje pretoka At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
