* slike so simbolične

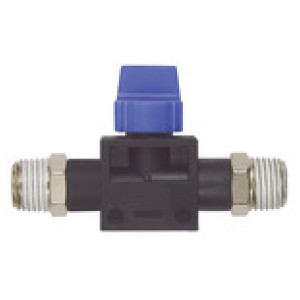

3/2 pot.vent. Blue serija", R 1/4 R 1/8, Nit premaz
SKU: 135953RIE
EAN: 4047322500722
3/2-way valve »Blue Series«, R 1/4 o., R 1/8 o., with thread coating, pmin 1.5 bar, pmax temp. 15 bar, Plastic / NPBPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
15,26 €
| Šifra | Navoj 1 | Navoj 2 | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 135955RIE | R 1/2 | R 3/8 | 47.0 | 87.5 | Čas dobave: Predvidoma 3 - 5 dni | 28,04 € |  | |
| 135954RIE | R 3/8 | R 1/4 | 47.0 | 82.5 | Čas dobave: Predvidoma 3 - 5 dni | 22,37 € | | |
| 110106RIE | R 3/8 | R 3/8 | 46.0 | 83.5 | Čas dobave: Predvidoma 3 - 5 dni | 23,12 € | | |
| 110105RIE | R 1/4 | R 1/4 | 41.5 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,53 € | | |
| 110104RIE | R 1/8 | R 1/8 | 41.5 | 65.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,83 € | | |
| 135953RIE | R 1/4 | R 1/8 | 42.6 | 66.5 | Čas dobave: Predvidoma 3 - 5 dni | 15,26 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | 1.5 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Navoj 1 | R 1/4 |
| Navoj 2 | R 1/8 |
| L1 [mm] | 66.5 |
| L2 [mm] | 42.6 |
| Material | Plastic and nickel-plated brass |
