3/2 pot.vent. Blue serija, Vtični prik., G 3/8
SKU: 110115RIE
EAN: 4047322391344

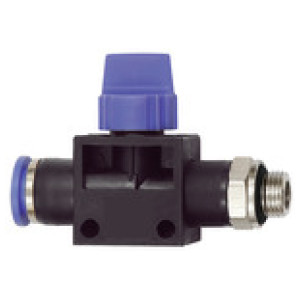

3/2-way valve »Blue Series«, Plug connector, G 3/8 o., for hose exterior Ø 8 mm, pmin 1.5 bar, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
19,42 €

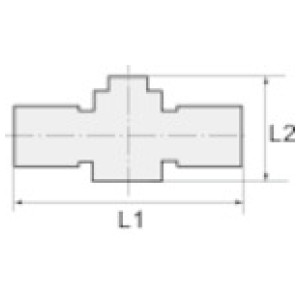

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110109RIE | G 1/8 | 8 | 14 | 41.5 | 58.5 | Čas dobave: Predvidoma 3 - 5 dni | 20,20 € |  | |
| 110108RIE | G 1/8 | 6 | 14 | 41.5 | 58.1 | Čas dobave: Predvidoma 3 - 5 dni | 16,16 € | | |
| 110113RIE | G 1/4 | 12 | 21 | 46.0 | 70.9 | Čas dobave: Predvidoma 3 - 5 dni | 39,00 € | | |
| 110118RIE | G 1/2 | 10 | 24 | 46.0 | 74.9 | Čas dobave: Predvidoma 3 - 5 dni | 25,42 € | | |
| 110110RIE | G 1/4 | 6 | 14 | 41.5 | 59.6 | Čas dobave: Predvidoma 3 - 5 dni | 17,87 € | | |
| 110117RIE | G 3/8 | 12 | 21 | 46.0 | 71.9 | Čas dobave: Predvidoma 3 - 5 dni | 28,45 € | | |
| 110111RIE | G 1/4 | 8 | 17 | 41.5 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,81 € | | |
| 110112RIE | G 1/4 | 10 | 17 | 46.0 | 70.9 | Čas dobave: Predvidoma 3 - 5 dni | 31,55 € | | |
| 110119RIE | G 1/2 | 12 | 24 | 46.0 | 75.4 | Čas dobave: Predvidoma 3 - 5 dni | 28,45 € | | |
| 110114RIE | G 3/8 | 6 | 14 | 41.5 | 61.1 | Čas dobave: Predvidoma 3 - 5 dni | 18,04 € | | |
| 110116RIE | G 3/8 | 10 | 20 | 46.0 | 72.4 | Čas dobave: Predvidoma 3 - 5 dni | 23,89 € | | |
| 110115RIE | G 3/8 | 8 | 17 | 41.5 | 61.5 | Čas dobave: Predvidoma 3 - 5 dni | 19,42 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | 1.5 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 3/8 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 61.5 |
| L2 [mm] | 41.5 |
| a/f [mm] | 17 |
| Material | Plastic and nickel-plated brass |
