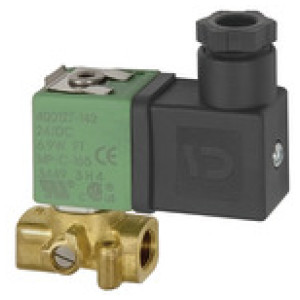

3/2-potni el.mag. ventil med., NC, 24 V DC, FKM, G 1/8
SKU: 102962RIE
EAN: 4047322195775
3/2-way solenoid valve brass, NC, 24 V DC, Sealing material FKM, Medium temperature -10 °C to 100 °C, G 1/8, PN 0 - 15 bar
Directly operated seat valve with spring return and manual operator.
Also suitable for vacuum operation.
Čas dobave: Predvidoma 3 - 5 dni
67,15 €
ali od 12,27 € / mesec
Izračunaj obrok
Obrestno financiranje
- 12,27 € x 6 mesecev
- 24,26 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Napetost | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 102961RIE | 230/50 V AC, 50 Hz | Čas dobave: Predvidoma 3 - 5 dni | 67,15 € |  | |
| 102962RIE | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | 67,15 € | |
Opis
3/2-way solenoid valve brass, NC, 24 V DC, Sealing material FKM, Medium temperature -10 °C to 100 °C, G 1/8, PN 0 - 15 bar
Directly operated seat valve with spring return and manual operator.
Also suitable for vacuum operation.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 15 |
| Električni priključek | Connector socket, can be rotated 180°, PG7 acc. to 43650 |
| Ohišje | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 60 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 100 |
| Aplikacije | Compressed air and neutral, non-toxic gases, water, oil |
| Navoj | G 1/8 |
| Ffunkcija | interchangeable magnetic heads (AC/DC) |
| DN | 1.2 |

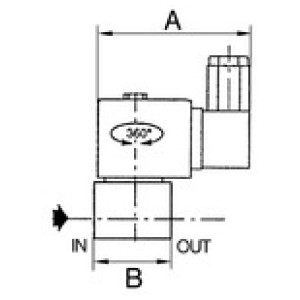

| A [mm] | 58.0 |
| B [mm] | 33.0 |
| Napetost | 24 V DC |
