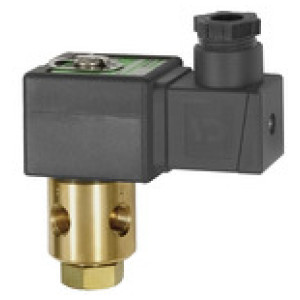

3/2-potni el.mag. ventil, NC, direk. upr. 230 V, 50 - 60 Hz
SKU: 102963RIE
EAN: 4047322160698
3/2-way solenoid valve brass, NC, directly operated 230 V, 50 - 60 Hz, Sealing material NBR, Rp 1/8, PN 0 - 7 bar, I.D. 2.4
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
3/2-potni el.mag. ventil, NC, direk. upr. 230 V, 50 - 60 Hz
Električni priključek: For Pg 11P connector socket acc. to ISO 4400

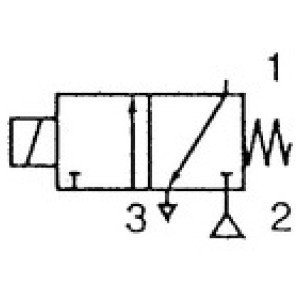

Ffunkcija: normally closed (NC)
IP zaščita: IP65 (with connector socket fitted)
Navoj: Rp 1/8
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass
Standardni navoj: Rp thread acc. to ISO 7-1
Ffunkcija: normally closed (NC)
IP zaščita: IP65 (with connector socket fitted)
Navoj: Rp 1/8
Notranji deli: Stainless steel
Ohišje: Brass
Sedež ventila: Brass
Standardni navoj: Rp thread acc. to ISO 7-1
Aktivni filtri - 0
| Šifra | Navoj | DN | Max. obratovalni tlak [bar] | Vrsta | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 102963RIE | Rp 1/8 | 2.4 | 7 | 7 | 30.0 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 102964RIE | Rp 1/4 | 3.2 | 6 | 10 | 43.0 | 80.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 2 od 2 zapisov
Opis
3/2-way solenoid valve brass, NC, directly operated 230 V, 50 - 60 Hz, Sealing material NBR, Rp 1/8, PN 0 - 7 bar, I.D. 2.4
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 7 |
| Električni priključek | For Pg 11P connector socket acc. to ISO 4400 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 75 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 90 |
| Navoj | Rp 1/8 |
| Vrsta | 7 |
| Ffunkcija | normally closed (NC) |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| DN | 2.4 |
| A [mm] | 75.0 |
| B [mm] | 30.0 |
