* slike so simbolične

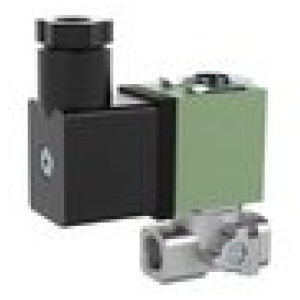

3/2-potni el.mag. ventil ner.jeklo, NC, 230VAC,50-60Hz, G 1/8
SKU: 158093RIE
EAN: 4047322631815
3/2-way solenoid valve stainless steel, NC, Direct. opera., 230VAC, 50-60 Hz, Medium temp. -10°C to 100°C, FPM, G 1/8, PN 0-15 bar
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
3/2-potni el.mag. ventil ner.jeklo, NC, 230VAC,50-60Hz, G 1/8
Električni priključek: for connector socket PG 11 P, acc. to DIN 4400
Ffunkcija: normally closed (NC)
IP zaščita: IP 65 (with connector socket fitted)
Navoj: G 1/8
Notranji deli: Stainless steel
Ohišje: Stainless steel 1.4401
Sedež ventila: Stainless steel 1.4401
Napetost: 230 V AC, 50 - 60 Hz
Ffunkcija: normally closed (NC)
IP zaščita: IP 65 (with connector socket fitted)
Navoj: G 1/8
Notranji deli: Stainless steel
Ohišje: Stainless steel 1.4401
Sedež ventila: Stainless steel 1.4401
Napetost: 230 V AC, 50 - 60 Hz
| Šifra | Napetost | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 158094RIE | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 158093RIE | 230 V AC, 50 - 60 Hz | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
3/2-way solenoid valve stainless steel, NC, Direct. opera., 230VAC, 50-60 Hz, Medium temp. -10°C to 100°C, FPM, G 1/8, PN 0-15 bar
Tehnični podatki in specifikacije
| IP zaščita | IP 65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 15 |
| Električni priključek | for connector socket PG 11 P, acc. to DIN 4400 |
| Ohišje | Stainless steel 1.4401 |
| Sedež ventila | Stainless steel 1.4401 |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 60 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 100 |
| Navoj | G 1/8 |
| Ffunkcija | normally closed (NC) |
| DN | 1.2 |

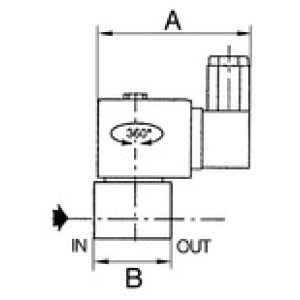

| A [mm] | 60.5 |
| B [mm] | 33.0 |
| Napetost | 230 V AC, 50 - 60 Hz |
