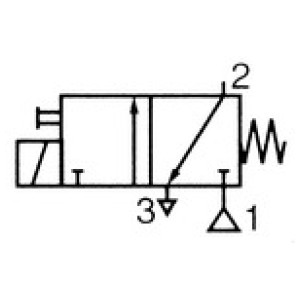

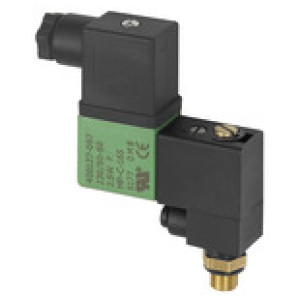

3/2-potni elektromagnetni ventil, Banjo priključek, NC, 24 DC
SKU: 102968RIE
EAN: 4047322012683
3/2-way solenoid valve for direct mounting, Banjo connection, NC, 24 DC, Medium/ambient temp. -10 °C to 60 °C, G 1/8 ET, PN 10 bar
Compact solenoid valves for mounting directly on the actuator
(single-acting cylinder, valve, etc.).
- Optimum installation
Supply port (1), solenoid valve body, coil and cable socket can be rotated 360°
- Manual operator
- Exhaust air restrictor available on request
Obrestno financiranje
- 17,57 € x 6 mesecev
- 34,75 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Napetost | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 102968RIE | 24 DC | Čas dobave: Predvidoma 3 - 5 dni | 95,61 € |  | |
| 102967RIE | 230/50 V | Čas dobave: Predvidoma 3 - 5 dni | 95,61 € | |
Opis
3/2-way solenoid valve for direct mounting, Banjo connection, NC, 24 DC, Medium/ambient temp. -10 °C to 60 °C, G 1/8 ET, PN 10 bar
Compact solenoid valves for mounting directly on the actuator
(single-acting cylinder, valve, etc.).
- Optimum installation
Supply port (1), solenoid valve body, coil and cable socket can be rotated 360°
- Manual operator
- Exhaust air restrictor available on request
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Max. delovna temperatura [°C] | 60 |
| Ohišje | Polyamide (glass fibre-reinforced) |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 60 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 60 |
| Navoj | G 1/8 ET |
| Ffunkcija | normally closed (NC) |

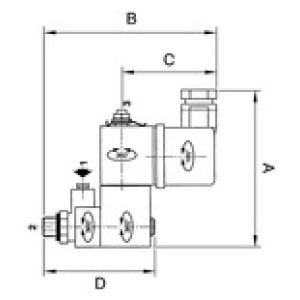

| A [mm] | 79.0 |
| B [mm] | 90.0 |
| Napetost | 24 DC |
| Port 1 | Plug connection for hose outside Ø 4 mm |
| Port 2 | G 1/8 thread |
| Odzračevalni vtič | M5 |
| D [mm] | 58.0 |
| C [mm] | 49.0 |
