3/2-potni mag. ventil s kontroliranim izpustom G 1/4 NC 6
SKU: 106863RIE
EAN: 9069609
3/2-way solenoid valve »lineonline« controlled venting, Hose - thread, G 1/4, Hose Ø 6, NC, 24 V DC, Operating pressure 2.5-7 bar
Though small in size, these valves are solenoid-piloted and feature very high performance.
Each valve comes complete with a monostable manual control and LED. Exhaust can be damped with a silencer or conveyed via a pipe fitting.
Function corresponds to the normal position of the valve.
Povpraševanje
Notranji deli: Nickel-plated brass, brass, technopolymer, stainless steel
Pnevmatski simboli: On housing
Telo: Technopolymer
Vhodna moč: 1.2 W
Operativna napetost: 24 V DC

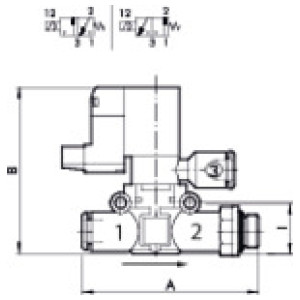

| Šifra | Ffunkcija | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 106861RIE | NC | G 1/8 | 6 | 14.6 | 57.5 | 58.3 | 380 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 106862RIE | NC | G 1/8 | 8 | 18.7 | 63.5 | 66.4 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106863RIE | NC | G 1/4 | 6 | 14.6 | 57.5 | 61.3 | 380 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106864RIE | NC | G 1/4 | 8 | 18.7 | 63.5 | 70.8 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106865RIE | NC | G 3/8 | 8 | 18.7 | 63.5 | 72.4 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106866RIE | NO | G 1/8 | 6 | 14.6 | 57.5 | 58.3 | 380 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106867RIE | NO | G 1/8 | 8 | 18.7 | 63.5 | 66.4 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106868RIE | NO | G 1/4 | 6 | 14.6 | 57.5 | 61.3 | 380 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106869RIE | NO | G 1/4 | 8 | 18.7 | 63.5 | 70.8 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106870RIE | NO | G 3/8 | 8 | 18.7 | 63.5 | 72.4 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
3/2-way solenoid valve »lineonline« controlled venting, Hose - thread, G 1/4, Hose Ø 6, NC, 24 V DC, Operating pressure 2.5-7 bar
Though small in size, these valves are solenoid-piloted and feature very high performance.
Each valve comes complete with a monostable manual control and LED. Exhaust can be damped with a silencer or conveyed via a pipe fitting.
Function corresponds to the normal position of the valve.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Min. obratovalni tlak [bar] | 2.5 |
| Max. obratovalni tlak [bar] | 7 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |
| Pnevmatski simboli | On housing |
| Operativna napetost | 24 V DC |
| Vhodna moč | 1.2 W |
| Navoj | G 1/4 |
| Za cevi Ø [mm] | 6 |
| A [mm] | 61.3 |
| B [mm] | 57.5 |
| I [mm] | 14.6 |
| Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | 380 |
| Ffunkcija | NC |
