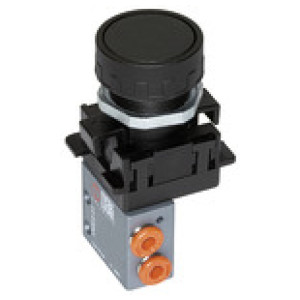

3/2-potni mali ventil, ročni, gumb, NC, 4 mm stranski rdeč
SKU: 106398RIE
EAN: Z326015900
3/2-way miniature valve, manual, Push button, NC, monostable, 4 mm side, Operating pre. 0.5-10 bar, Operating temp. -10°C to 60°C
Monostable (non-latching) and bistable (latching) versions available.
Čas dobave: Predvidoma 3 - 5 dni
43,97 €
| Šifra | Disc | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 106399RIE | Black | M5 female thread on side | Čas dobave: Predvidoma 3 - 5 dni | 43,33 € |  | |
| 106400RIE | Red | M5 female thread on side | Čas dobave: Predvidoma 3 - 5 dni | 43,33 € | | |
| 106397RIE | Black | Plug-in connector Ø 4 mm on side | Čas dobave: Predvidoma 3 - 5 dni | 43,97 € | | |
| 106398RIE | Red | Plug-in connector Ø 4 mm on side | Čas dobave: Predvidoma 3 - 5 dni | 43,97 € | |
Opis
3/2-way miniature valve, manual, Push button, NC, monostable, 4 mm side, Operating pre. 0.5-10 bar, Operating temp. -10°C to 60°C
Monostable (non-latching) and bistable (latching) versions available.
Tehnični podatki in specifikacije
| Min. obratovalni tlak [bar] | 0.5 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 60 |
| Delovni tlak pri 6 bar [N] | 8 |
| Pretok pri 6 bar in Δp 0,5 bar [Nl/min] | 35 |
| Telo ventila | Aluminium |
| Pritisni gumb | Nickel-plated brass |
| Tesnilo | NBR |
| Vzmet | Stainless steel |
| Povezava | Plug-in connector Ø 4 mm on side |

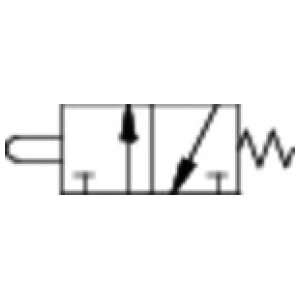

| Ffunkcija | 3/2 NC |
| Delovanje | Monostable |
| Nominalni Ø [mm] | 2.5 |
| Disc | Red |
