* slike so simbolične

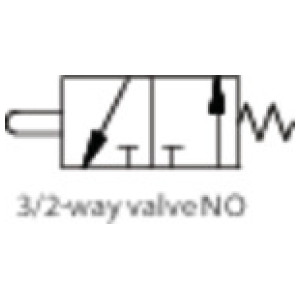

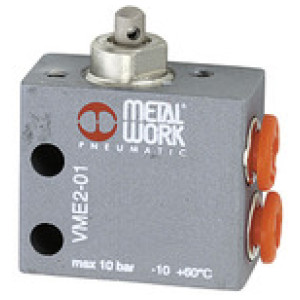

3/2-potni miniature ventil, mehanski, ročica, NO, 4 mm (stranski)
SKU: 106385RIE
EAN: W3501001100
3/2-way miniature valve, Mechanical, Tappet, NO, Connection 4 mm (side), Operating pre. 0.5-10 bar, Operating temp. -10°C to 60°C
Miniature valves, 3/2-way type, NC or NO.
Čas dobave: Predvidoma 3 - 5 dni
24,30 €
| Šifra | Povezava | Ffunkcija | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 106388RIE | M5 female thread on side | 3/2 NC | Čas dobave: Predvidoma 3 - 5 dni | 21,58 € |  | |
| 106386RIE | M5 female thread on side | 3/2 NO | Čas dobave: Predvidoma 3 - 5 dni | 23,63 € | | |
| 106387RIE | Plug-in connector Ø 4 mm on side | 3/2 NC | Čas dobave: Predvidoma 3 - 5 dni | 22,37 € | | |
| 106385RIE | Plug-in connector Ø 4 mm on side | 3/2 NO | Čas dobave: Predvidoma 3 - 5 dni | 24,30 € | |
Opis
3/2-way miniature valve, Mechanical, Tappet, NO, Connection 4 mm (side), Operating pre. 0.5-10 bar, Operating temp. -10°C to 60°C
Miniature valves, 3/2-way type, NC or NO.
Tehnični podatki in specifikacije
| Min. obratovalni tlak [bar] | 0.5 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 60 |
| Delovni tlak pri 6 bar [N] | 8 |
| Pretok pri 6 bar in Δp 0,5 bar [Nl/min] | 35 |
| Telo ventila | Aluminium |
| Pritisni gumb | Nickel-plated brass |
| Tesnilo | NBR |
| Vzmet | Stainless steel |
| Povezava | Plug-in connector Ø 4 mm on side |
| Ffunkcija | 3/2 NO |
| Nominalni Ø [mm] | 2.5 |
