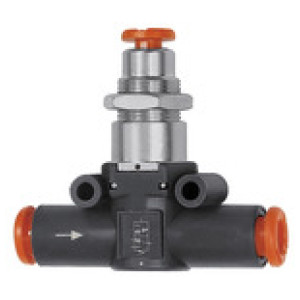

3/2-potni pnevm. ventil lineonline, NC, -, Ø6
SKU: 106790RIE
EAN: 9067616
3/2-way valve, pneumatically »lineonline«, NC, Hose - hose, for hose Ø 6 mm, Operating pressure max. 10 bar
The valves can only be used with compressed air at port 1 owing to their function.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
3/2-potni pnevm. ventil lineonline, NC, -, Ø6
Notranji deli: Nickel-plated brass, brass, technopolymer, stainless steel
Pnevmatski simboli: On housing
Telo: Technopolymer
Pnevmatski simboli: On housing
Telo: Technopolymer

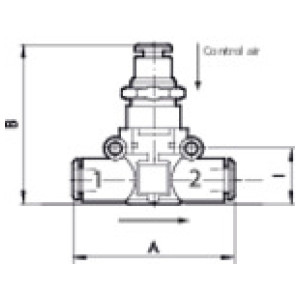

| Šifra | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 106791RIE | 8 | 18.7 | 49.7 | 57.3 | 790 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 106790RIE | 6 | 14.6 | 43.2 | 49.4 | 400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
3/2-way valve, pneumatically »lineonline«, NC, Hose - hose, for hose Ø 6 mm, Operating pressure max. 10 bar
The valves can only be used with compressed air at port 1 owing to their function.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |

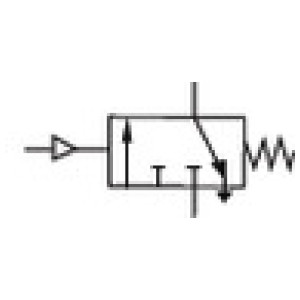

| Pnevmatski simboli | On housing |
| Nadzor zraka | 4 mm |
| Za cevi Ø [mm] | 6 |
| A [mm] | 49.4 |
| B [mm] | 43.2 |
| I [mm] | 14.6 |
| Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | 400 |
| Ffunkcija | NC |
