* slike so simbolične

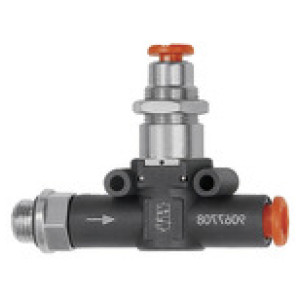

3/2-potni pnevm. ventil, NC, z navojem-, G 1/4, Ø 8
SKU: 106795RIE
EAN: 9067711
3/2-way valve, pneumatically »lineonline«, NC, Thread - hose, G 1/4, for hose Ø 8 mm, Operating pressure max. 10 bar
The valves can only be used with compressed air at port 1 owing to their function.

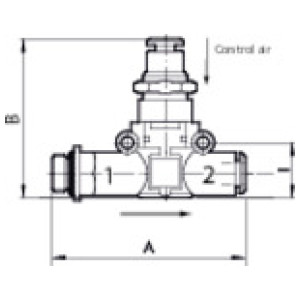

Šifra | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
106794RIE | G 1/4 | 6 | 14.6 | 43.2 | 61.5 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 35,59 € | ||
106792RIE | G 1/8 | 6 | 14.6 | 43.2 | 58.5 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 34,44 € | ||
106796RIE | G 3/8 | 8 | 18.7 | 49.7 | 72.2 | 790 | Čas dobave: Predvidoma 3 - 5 dni | 38,67 € | ||
106793RIE | G 1/8 | 8 | 18.7 | 49.7 | 66.2 | 790 | Čas dobave: Predvidoma 3 - 5 dni | 35,34 € | ||
106795RIE | G 1/4 | 8 | 18.7 | 49.7 | 70.6 | 790 | Čas dobave: Predvidoma 3 - 5 dni | 35,82 € |
Opis
3/2-way valve, pneumatically »lineonline«, NC, Thread - hose, G 1/4, for hose Ø 8 mm, Operating pressure max. 10 bar
The valves can only be used with compressed air at port 1 owing to their function.
Tehnični podatki in specifikacije
Min. temperaturno območje [°C] | -20 |
Max. obratovalni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 60 |
Tesnilo | NBR |
Telo | Technopolymer |
Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |

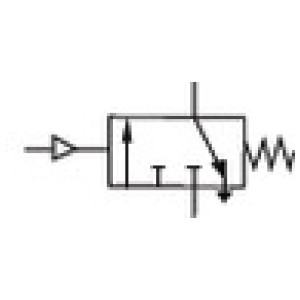

Pnevmatski simboli | On housing |
Nadzor zraka | 4 mm |
Navoj | G 1/4 |
Za cevi Ø [mm] | 8 |
A [mm] | 70.6 |
B [mm] | 49.7 |
I [mm] | 18.7 |
Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | 790 |
Ffunkcija | NC |
