* slike so simbolične

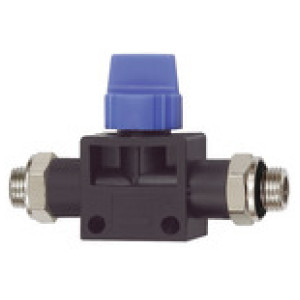

3/2 potni ventil »Blue serija«, G 1/2 o., G 3/8 o.
SKU: 135948RIE
EAN: 4047322500869

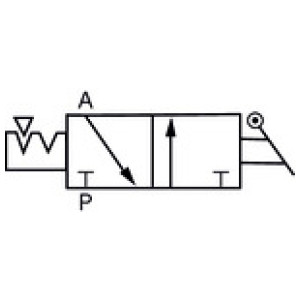

3/2-way valve »Blue Series«, G 1/2 o., G 3/8 o., pmin 1.5 bar, pmax short term 15 bar, Plastic / nickel-plated brassPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
3/2 potni ventil »Blue serija«, G 1/2 o., G 3/8 o.
Material: Plastic and nickel-plated brass
Navoj 1: G 1/2
Navoj 2: G 3/8
Serija: Blue series
Srednje: Compressed air, neutral and safe gases and liquids
Navoj 1: G 1/2
Navoj 2: G 3/8
Serija: Blue series
Srednje: Compressed air, neutral and safe gases and liquids
| Šifra | Navoj 1 | Navoj 2 | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 135949RIE | G 1/2 | G 1/2 | 47.0 | 86.7 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 110103RIE | G 3/8 | G 3/8 | 46.0 | 81.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 135946RIE | G 1/4 | G 1/8 | 42.6 | 66.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 110102RIE | G 1/4 | G 1/4 | 41.5 | 68.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 135948RIE | G 1/2 | G 3/8 | 47.0 | 83.2 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 110101RIE | G 1/8 | G 1/8 | 41.5 | 65.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 135947RIE | G 3/8 | G 1/4 | 47.0 | 80.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | 1.5 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Navoj 1 | G 1/2 |
| Navoj 2 | G 3/8 |

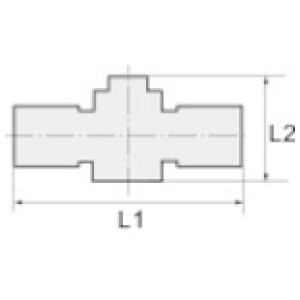

| L1 [mm] | 83.2 |
| L2 [mm] | 47.0 |
| Material | Plastic and nickel-plated brass |
