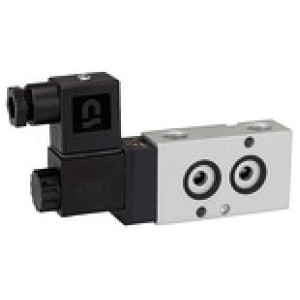

3/2-potni ventil, NAMUR, monostabilen, NC, G 1/4, 230 V, 50Hz
SKU: 103659RIE
EAN: 4047322272445
3/2-way valve, NAMUR, NC, Anodised aluminium, Temp. max. 70 °C, Working pressure 1.5 - 10 bar, Connection G 1/4, 230 V, 50Hz
3/2 and 5/2-way spool valves, monostable, with air purging function and pneumatic spring return.
With latching manual operator and optional outgoing air restriction.
Obrestno financiranje
- 12,63 € x 6 mesecev
- 24,98 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Napetost | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
103659RIE | 230 V, 50 Hz | Čas dobave: Predvidoma 3 - 5 dni | 68,61 € | ||
103660RIE | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | 68,61 € |
Opis

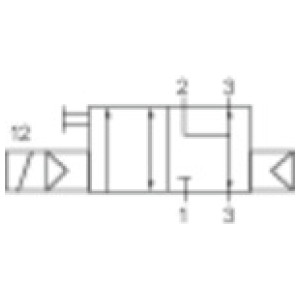

3/2-way valve, NAMUR, NC, Anodised aluminium, Temp. max. 70 °C, Working pressure 1.5 - 10 bar, Connection G 1/4, 230 V, 50Hz
3/2 and 5/2-way spool valves, monostable, with air purging function and pneumatic spring return.
With latching manual operator and optional outgoing air restriction.
Tehnični podatki in specifikacije
Povezava | G 1/4 |
Min. delovni tlak [bar] | 1.5 |
Max. delovni tlak [bar] | 10 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 70 |
Ohišje | Aluminium anodised |
Ročno upravljanje | latching |
DN | 7 |
Napetost | 230 V, 50 Hz |
Pretok [l/min] | 1250 |
Tesnilo | NBR |
Srednje | Air, neutral gases (filtered) |
Električni priključek | Connector socket Pg 9 |
Vhodna moč | 3 W=/ 5 VA~ |
Tuljava | Stainless steel |
Obseg dobave | Plug connector PG 9, 1 coding pin, 2 Orings, 2 fixing screws |
