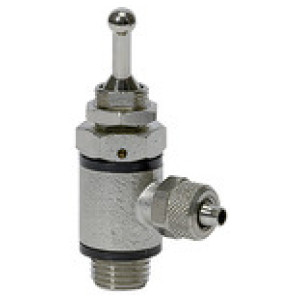

3/2-preklopni vzvodni ventil, smer cevi, hitri priklop, G 1/8
SKU: 107025RIE
EAN: 4047322181327
3/2-way toggle lever valve, Hose side, Quick connector Hose 6/4, G 1/8, PN max. 8 bar, Temp. -20 °C to 80 °C, nickel-plated brass
Manually operated toggle valve, 3/2-way types. For all applications where compressed air must be switched on or off quickly and easily or a cylinder operated manually. Designed as a banjo-type valve with a hollow bolt and ring piece. Suitable for screwing directly into the equipment or for panel mounting. Compact type of construction, also ideal where space is restricted.
Povpraševanje
Navoj za pritrditev plošče: M12x0.75 (max. plate thickness 4 mm)
Nihajna roka: Nickel-plated brass
Notranji deli: Brass with a bare metal surface
Povezava: Pressure port on hose side
Preklop: Nickel-plated brass
Votli vijak: Nickel-plated brass
Vrsta povezave: Quick lock screw fitting
Zarobljena tesnila: Polyamide (glass fibre-reinforced)

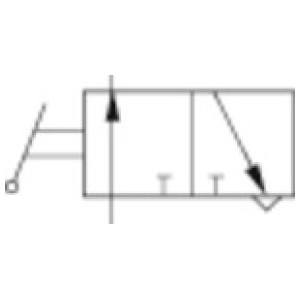

Ffunkcija: 3/2-way

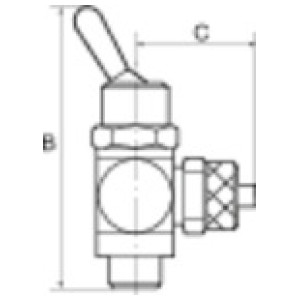

| Šifra | Navoj | Za cevi [mm] | a/f [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 107029RIE | G 1/4 | 8/6 | 17 | 27.5 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107025RIE | G 1/8 | 6/4 | 14 | 25.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107030RIE | G 1/4 | 10/8 | 17 | 28.5 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107024RIE | G 1/8 | 5/3 | 14 | 25.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107026RIE | G 1/8 | 8/6 | 14 | 25.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107028RIE | G 1/4 | 6/4 | 17 | 26.5 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
3/2-way toggle lever valve, Hose side, Quick connector Hose 6/4, G 1/8, PN max. 8 bar, Temp. -20 °C to 80 °C, nickel-plated brass
Manually operated toggle valve, 3/2-way types. For all applications where compressed air must be switched on or off quickly and easily or a cylinder operated manually. Designed as a banjo-type valve with a hollow bolt and ring piece. Suitable for screwing directly into the equipment or for panel mounting. Compact type of construction, also ideal where space is restricted.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 8 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Votli vijak | Nickel-plated brass |
| Nihajna roka | Nickel-plated brass |
| Notranji deli | Brass with a bare metal surface |
| Tesnilo | NBR |
| Zarobljena tesnila | Polyamide (glass fibre-reinforced) |
| Preklop | Nickel-plated brass |
| Navoj | G 1/8 |
| Povezava | Pressure port on hose side |
| Za cevi [mm] | 6/4 |
| B [mm] | 55.0 |
| C [mm] | 25.0 |
| a/f [mm] | 14 |
| Navoj za pritrditev plošče | M12x0.75 (max. plate thickness 4 mm) |
| Ffunkcija | 3/2-way |
| Vrsta povezave | Quick lock screw fitting |
